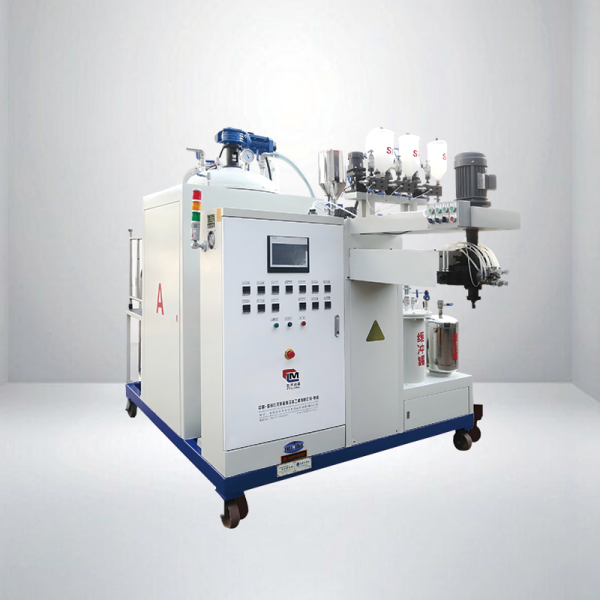

Polyurethane elastomer casting machine CPU20/30F(S)-Y(series) | For molds seals and industrial accessories | Feilong Equipment Manufacturer

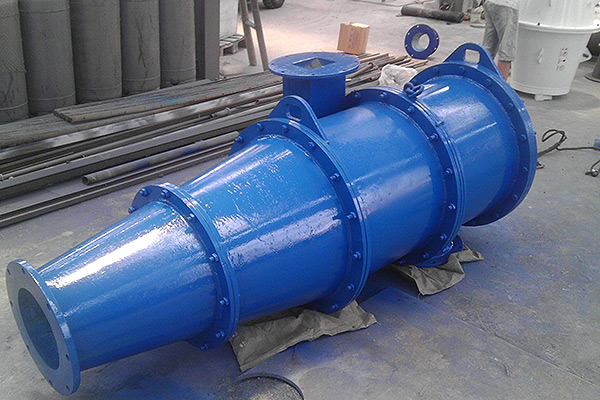

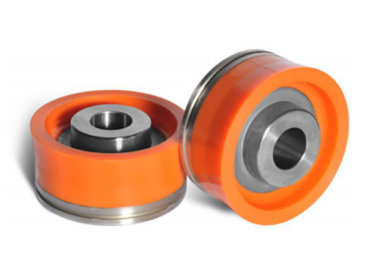

APPLICATION: This is used for the production of cast polyurethane elastomer products using chain extenders such as MOCA or BDO, including industrial rollers, mining sieve plates, hydraulic sealing rings, photovoltaic guide wheels, automobile steering shaft ball sockets, petroleum pipeline pigs, hydrocyclones, conveyor pipeline linings, and more.
Product Details
FEATURES
1.The entire system is controlled by a PLC touchscreen, displaying frequency, speed, flow rate, and HMI (Human-Machine Interface), with excellent operability and the ability to store up to 99 recipes.
2.Precise metering: High-precision low-speed gear pump ensures an error rate of ≤5%.
3.Uniform mixing: Equipped with a multi-tooth high-shear mixing head for reliable performance.
4.Casting head: Features a floating mechanical seal to prevent material backflow.
5.Stable material temperature: Utilizes a multi-point temperature control system with thermal oil heating, maintaining an error margin of <±2°C.
6.Bubble-free products: Includes a vacuum degassing system to eliminate macroscopic bubbles.
7.Optional coloring system: Directly injects color paste into the mixing unit, reducing costs and improving efficiency.

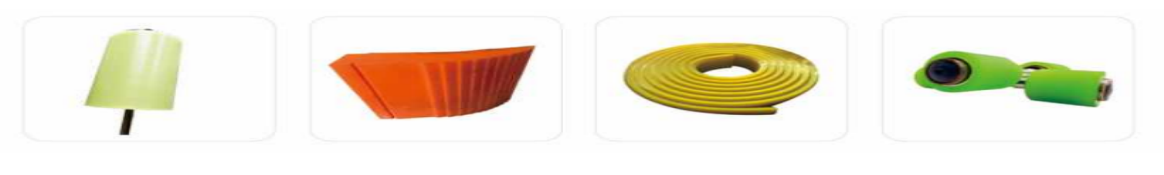

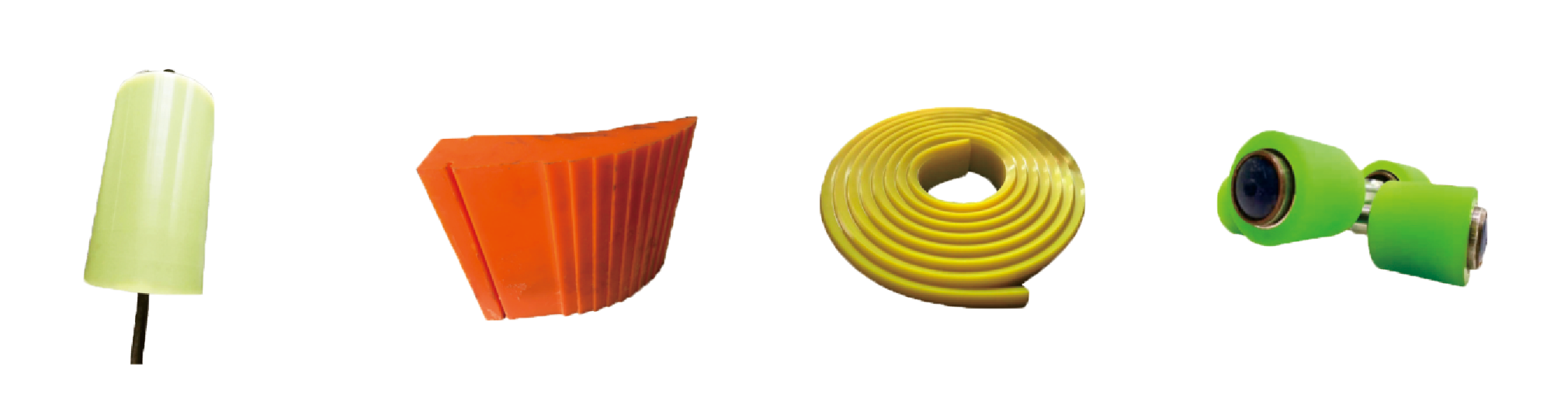

END PRODUCTS
