Two-component elastomer casting machine (oil heating type)

Type/output
H1/200-800(g/min)
Type/output
H2/1000-3000(g/min)
Type/output
H3/2000-5000(g/min)
Type/output
H4/3000-8000(g/min)
Type/output
H5/5000-15000(g/min)

The two-component elastomer casting machine (oil heating type) is an automated equipment dedicated to the precise molding of elastomer materials. It features an oil heating temperature control system with a temperature control accuracy of ±1℃, and is stably compatible with two-component elastomer raw materials such as polyurethane and silicone rubber.

Description Image
Description Image
Description Image

تفاصيل المنتج

FEATURES

1.The entire system is controlled by a PLC touchscreen, displaying frequency, speed, flow rate, and HMI (Human-Machine Interface), with excellent operability and the ability to store up to 99 recipes.

2.Precise metering: High-precision low-speed gear pump ensures an error rate of ≤5%.

3.Uniform mixing: Equipped with a multi-tooth high-shear mixing head for reliable performance.

4.Casting head: Features a floating mechanical seal to prevent material backflow.

5.Stable material temperature: Utilizes a multi-point temperature control system with thermal oil heating, maintaining an error margin of <±2°C.

6.Bubble-free products: Includes a vacuum degassing system to eliminate macroscopic bubbles.

7.Optional coloring system: Directly injects color paste into the mixing unit, reducing costs and improving efficiency.

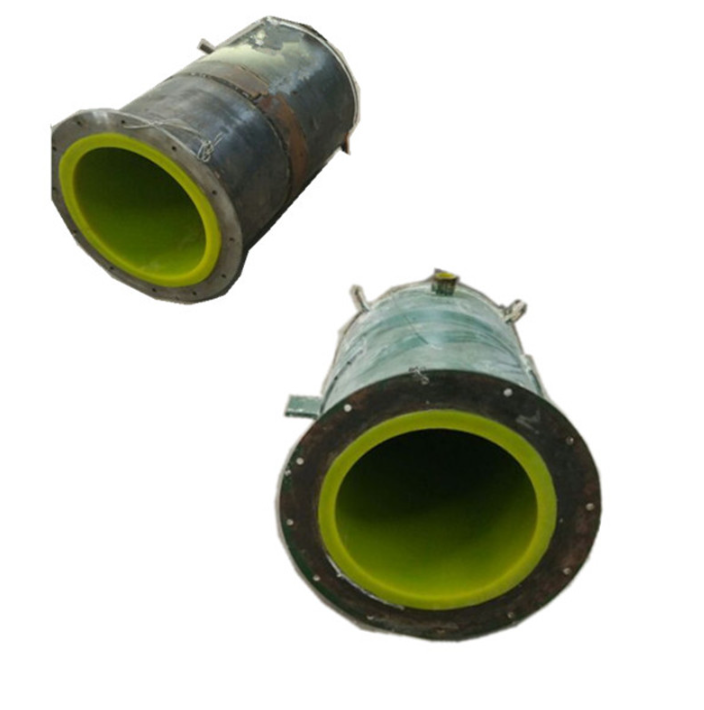

END PRODUCTS
