FEILONG PU MACHINE

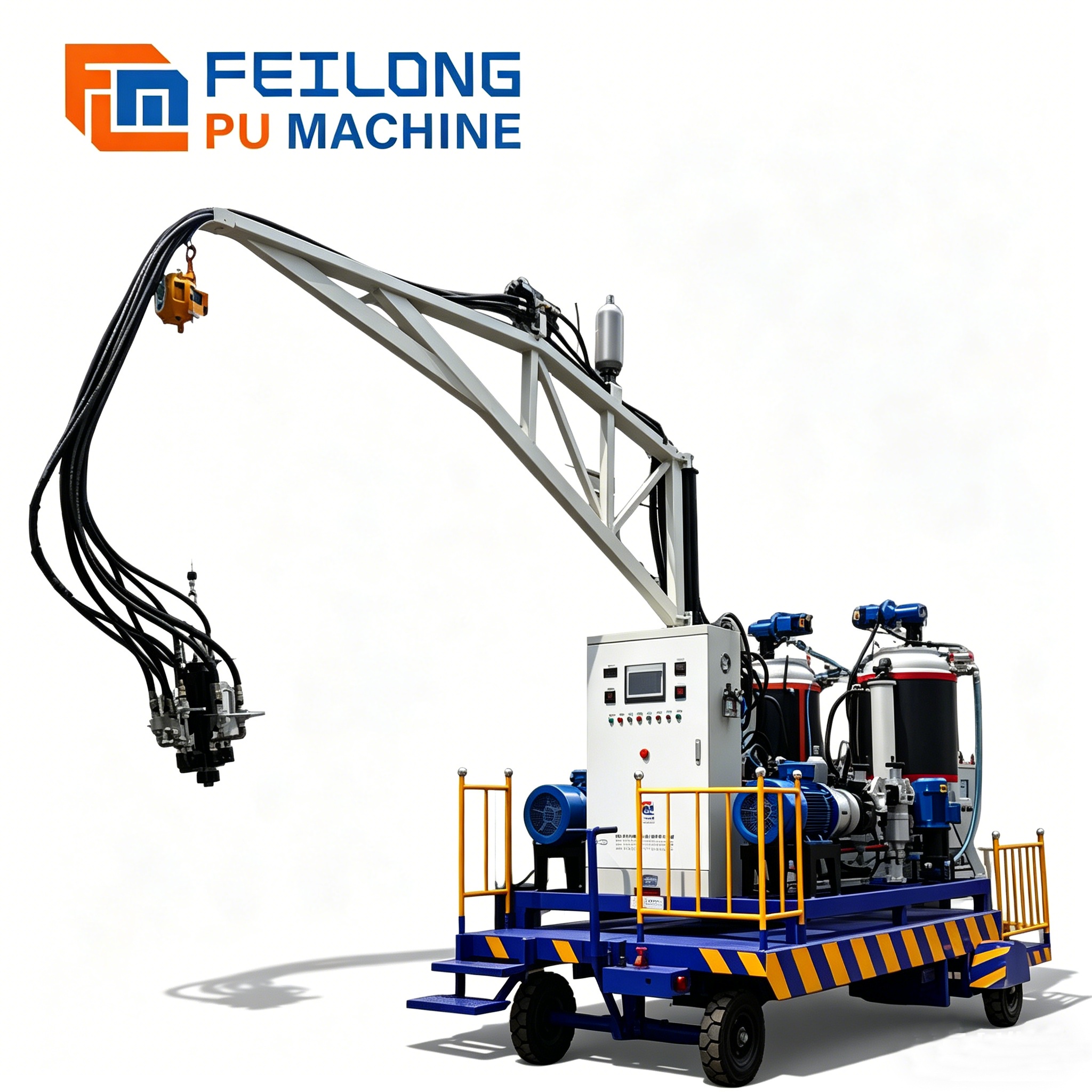

Walking PU Foaming Machine (high-pressure) with Large Flow Rate of 5 to 300 KG/min Refrigerator / Freezer / Sponge
Highlights at a glance

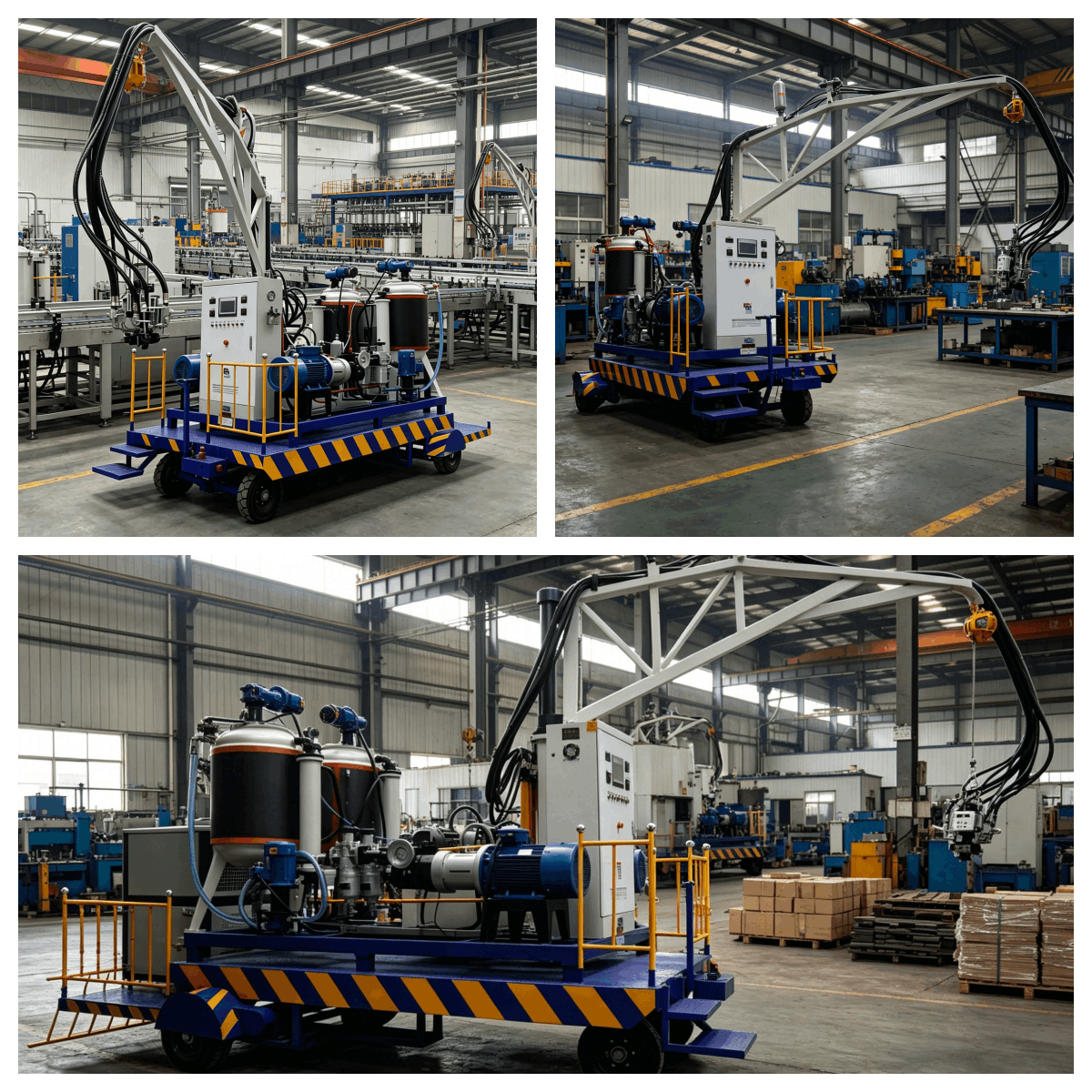

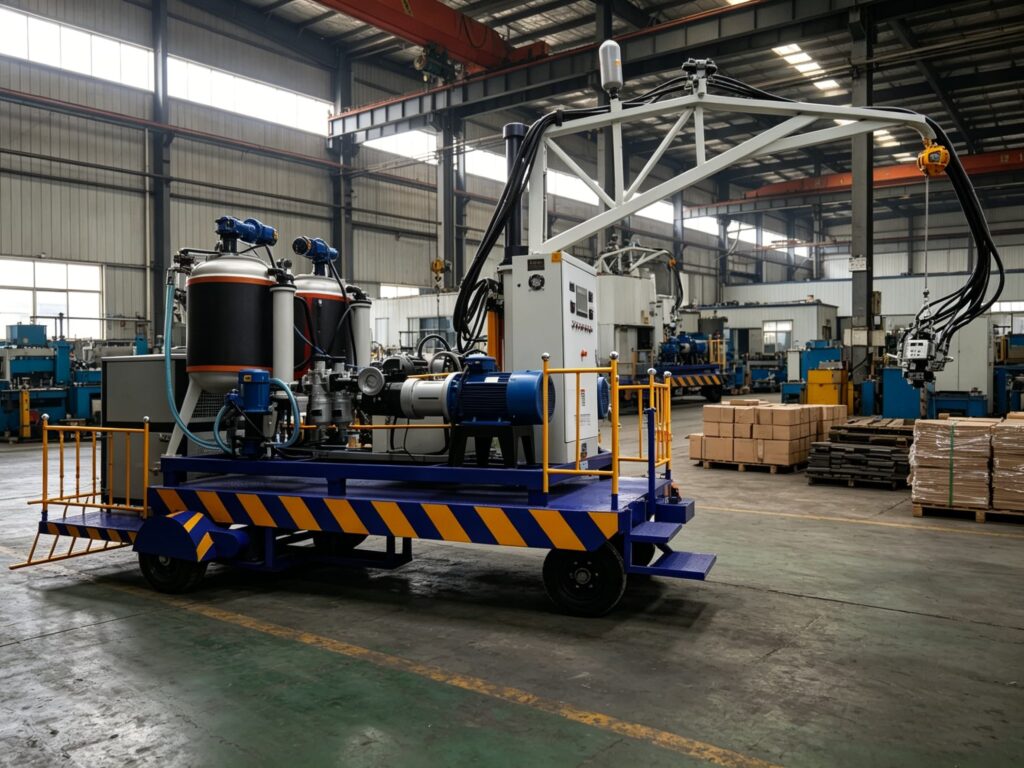

Mobile Walking High-pressure Design, flexible movement, free shift for on-site foaming operation
Excellent for refrigerator & freezer insulation foam filling, perfect cabinet inner cavity foaming
Precision material ratio control, stable foaming quality, low defective product rate
Energy-saving and stable operation, durable components, lower long-term running cost
Customizable parameters, meet diversified process requirements of home appliance and sponge industry
Main purpose:
imitation wood furniture
cold storage panels
car seat cushions
headrests
Insulation board
Phone
+86 13567785285
Quailty Excellence
Core Performance
Excellence QC System
Provide high-quality products and services that exceed customer expectations.
High Scalability
A top-notch industry software development team provides you with first-class service.
Multi-dimensional Support
Professional technical support solutions provided by multiple industries and expert teams
Core Performance
Excellence QC System
Provide high-quality products and services that exceed customer expectations.
High Scalability
A top-notch industry software development team provides you with first-class service.
Multi-dimensional Support
Professional technical support solutions provided by multiple industries and expert teams
Key Attributes
Key Attributes
| voltage | 380 V, Customized | power (kw) | 25 kW |
| core components | PLC,Merering pump,Mixed head,Hydraulic system,Magnetic coupling motor | warranty | 1 Year |
| machinery test report | Provided | video outgoing-inspection | Provided |
| brand name | FEILONG | place of origin | Zhejiang, China |
| weight (kg) | 1500 | Machine Type | Pu Foam Machine |
| Produced products | Car seat, Insulation material, Sofa cushion, Wooden imitation, Headrest | Foam product | PU foam, Rigid PU Foam, Soft PU foam, Microcellular foaming |
| Mixing ratio(Soft foaming) | 100: 20-35 | Mixing ratio(Rigid foaming) | 100: 80-120 |
| Output | 5-300kg/min | Certification | CE/ISO |
Widely used in the foaming production of automotive seats, steering wheels, insulation pipes, cold storage panels and insulation building materials.
The mixing method of raw materials is high-pressure spraying and impact, achieving a very good mixing effect;
The raw material circulation pressure is 5-15 MPa, and the oil circuit control pressure is 10-20 MPa;
It is equipped with an automatic feeding pump, which can automatically feed and stop feeding;
It is equipped with a liquid level gauge, which can display the amount of material (also can be displayed on the touch screen), control the feeding pump to achieve automatic feeding;
Produce : Any kinds of PU products.
Three-phase five-wire system with 380V; Frequency: 50Hz;(Voltage can be customized)
Air source: Inlet pipe outer diameter 8mm, pressure 0.4 – 0.6 MPa.
Environmental temperature: Constant temperature control
The installation site has no risk of fire or explosion, and there is no severe vibration
High-Performance Custom PU
