FEILONG PU MACHINE
Seam Filling (Railway/Bridge) Special Equipment / PU Elastomer Casting Machine / MDI Prepolymers TDI Products / Customizable
Highlights at a glance
High-Precision PLC Control: Ensures accurate and repeatable casting processes.
MDI Prepolymer Casting System: Precisely controls the chemical reaction for optimal results.
Polyurethane Elastomer Casting Machine: Ideal for producing durable and flexible parts.
Elastomer Pouring Equipment: Simplifies the pouring process for efficient production.
Robust Construction: Built to withstand industrial use and demanding environments.
Main purpose:

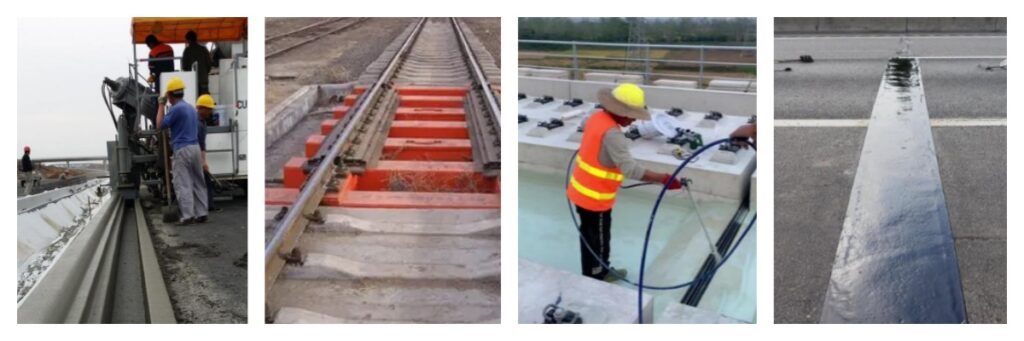

Railway seam filling elastomer materials
ded PU abrasive
Construction joint elastic filling blocks
Highway bridge flexible sealing materials
Infrastructure gap buffer elastomers
Phone
+86 13567785285
Quailty Excellence
Core Performance
Excellence QC System
Provide high-quality products and services that exceed customer expectations.
High Scalability
A top-notch industry software development team provides you with first-class service.
Multi-dimensional Support
Professional technical support solutions provided by multiple industries and expert teams
Core Performance
Excellence QC System
Provide high-quality products and services that exceed customer expectations.
High Scalability
A top-notch industry software development team provides you with first-class service.
Multi-dimensional Support
Professional technical support solutions provided by multiple industries and expert teams
Key Attributes
Key Attributes
| Voltage | 380 V, Customizable | Power(W) | 30 KW |
| core components | PLC, Mixed head, Metering pump | warranty | 1 Year |
| machinery test report | Provided | video outgoing-inspection | Provided |
| Machine Type | PU elastomer casting machine | Produced products | Railway, bridge joint filling |
| Weight (kg) | 1500 | Material system | MDI,TDI |
| Mixing ratio(MDI) | 100: 50-150 | Mixing ratio(TDI) | 100:6-20 |

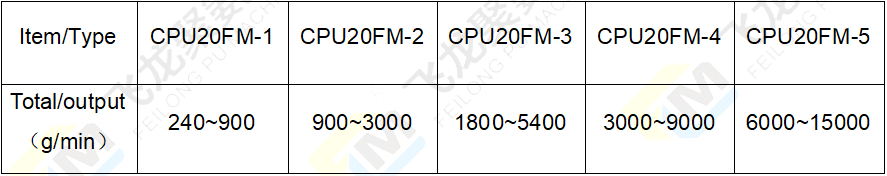

| Output | 0.1-500kg/min | Colorable/Additveable | customizable |
| place of origin | Zhejiang, China | brand name | FEILONG |
| Certification | CE/ISO |
This equipment is specifically designed as a mid-temperature elastomer injection machine based on the injection molding process of polyurethane elastomers using MDI semi-prepolymer as the chain extender.
The storage tanks, metering pumps and filters are heated by an oven, and the external fans circulate air for temperature regulation. The temperature is stable. The material pipes are automatically insulated by high-temperature electric heating tapes.
Stable and reliable after-sales service, with a professional and powerful after-sales technical team and sufficient inventory, providing a guarantee for high-quality after-sales service.
Three-phase five-wire system with 380V; Frequency: 50Hz;(Voltage can be customized)
Air source: Inlet pipe outer diameter 8mm, pressure 0.4 – 0.6 MPa.
Environmental temperature: Constant temperature control
The installation site has no risk of fire or explosion, and there is no severe vibration.
