FEILONG PU MACHINE

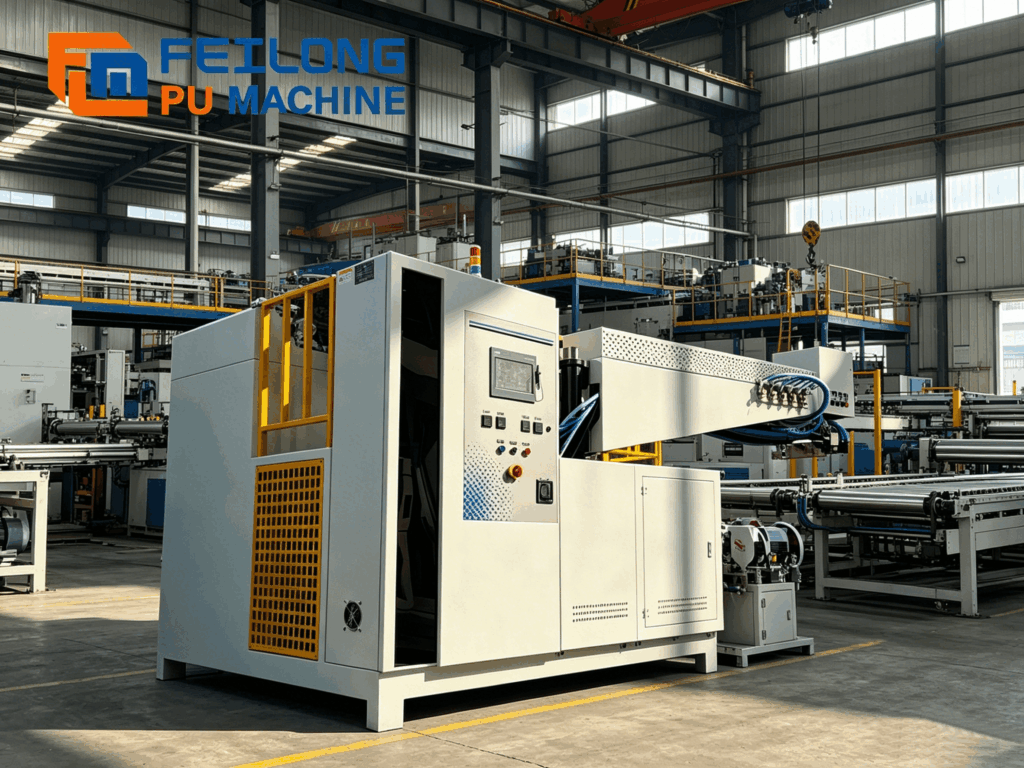

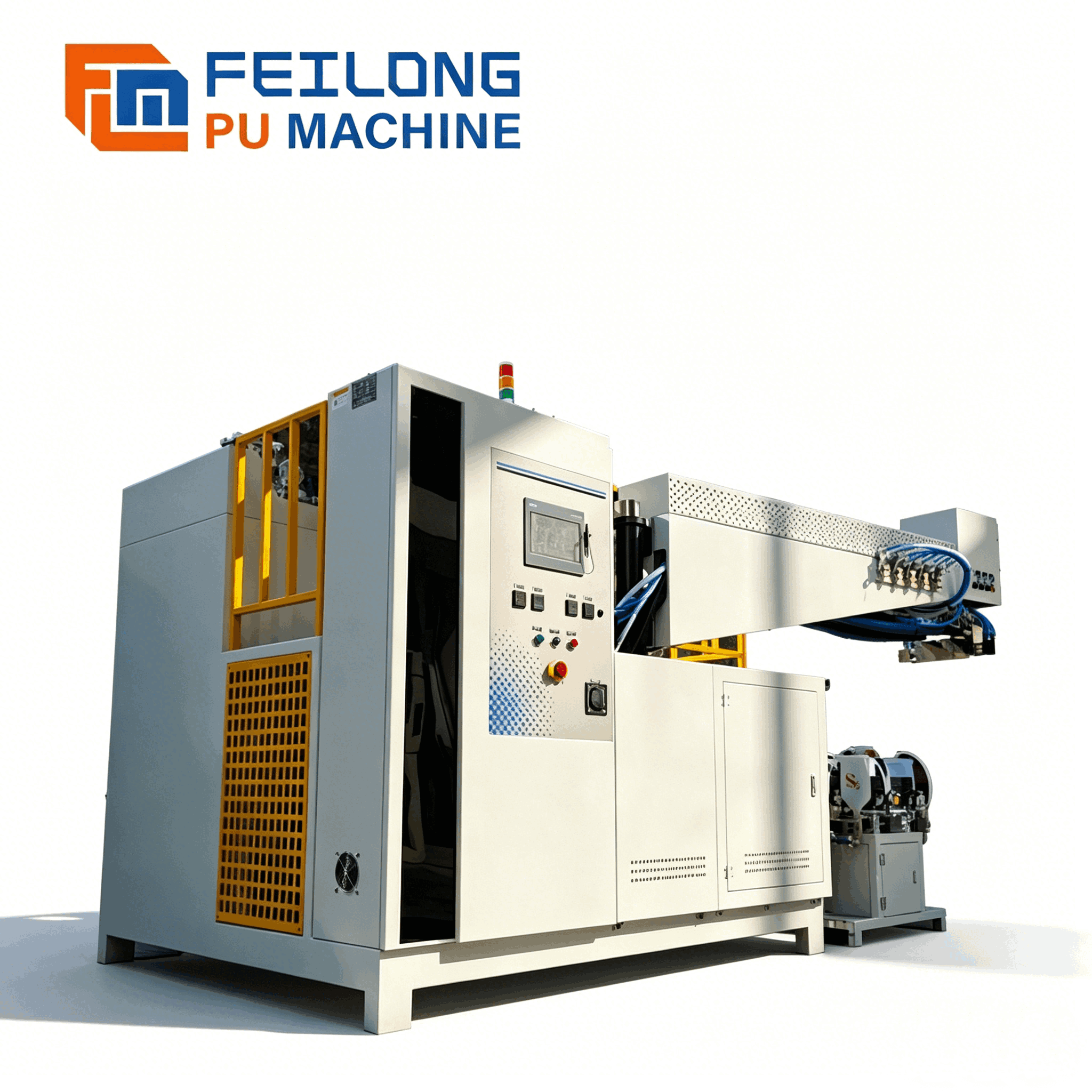

PU Elastomer Casting Machine (electric Heating) Customizable 10/12/16/20 Color Polyurethane Equipment-Bouldering/Rock Climbing
Highlights at a glance
Stable Electric Heating System: Adopts high-precision electric heating design, fast temperature rise, uniform heat distribution, no oil leakage risk, clean and environmentally friendly.
High-precision Casting & Metering: Equipped with precise proportional feeding and mixing system, ensuring uniform material mixing and consistent density of finished climbing holds.
Professional for Climbing Products: Specially customized for manufacturing PU bouldering holds, rock climbing grips and outdoor climbing equipment parts.
Customizable Overall Configuration: Support personalized customization of color groups, output, machine size and functions according to customer production needs.
Main purpose:
Industrial rubber rollers
Screen plates for mining
Hydraulic sealing ring
Photovoltaic guide wheel
Automotive steering shaft ball cup
Phone
+86 13567785285
Quailty Excellence
Core Performance
Excellence QC System
Provide high-quality products and services that exceed customer expectations.
High Scalability
A top-notch industry software development team provides you with first-class service.
Multi-dimensional Support
Professional technical support solutions provided by multiple industries and expert teams
Core Performance
Excellence QC System
Provide high-quality products and services that exceed customer expectations.
High Scalability
A top-notch industry software development team provides you with first-class service.
Multi-dimensional Support
Professional technical support solutions provided by multiple industries and expert teams
Key Attributes
Key Attributes
| voltage | 380 V, Customized | power (kw) | 30 kW |
| core components | PLC, Merering pump, Mixed head | warranty | 1 Year |
| machinery test report | Provided | video outgoing-inspection | Provided |
| brand name | FEILONG | place of origin | Zhejiang, China |
| weight (kg) | 2000 | Machine Type | PU elastomer casting machine |
| Produced products | Screen plate,Sealing element,Pipe lining,Wheels,Packing blocks | Material system | MDI,TDI,NDI,PPDI |
| Mixing ratio | 100: 50-150 | Mixing ratio(TDI) | 100:6-20 |
| Mixing ratio(NDI) | 100: 2.5-8 | Mixing ratio(PPDI) | 100:80-120 |

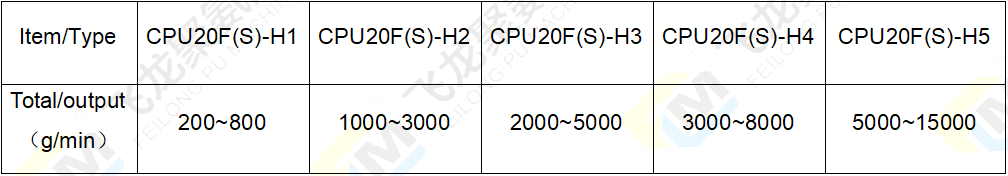

| 0.1-500kg/min | 0.1-500kg/min | Colorable/Additveable | 1 – 20 colors (customizable) |
| Certification | CE/ISO |
A high-temperature elastomer casting machine specially designed for the casting process of polyurethane elastomers. The equipment can meet your current and future process operation needs.
It is mainly used for the production of polyurethane elastomer products with MOCA, E300 or BDO as chain extenders. Such as industrial rubber rollers, rock climbing wheels, roller skating wheels, mining screen plates, hydraulic sealing rings, photovoltaic guide wheels, casters, cyclones, etc.
will be no measurement accuracy errors due to changes in pressure and temperature; The head adopts an independently developed
mixing device (patented technology), and the mixing head adopts a special structure (independently developed), which mixes evenly

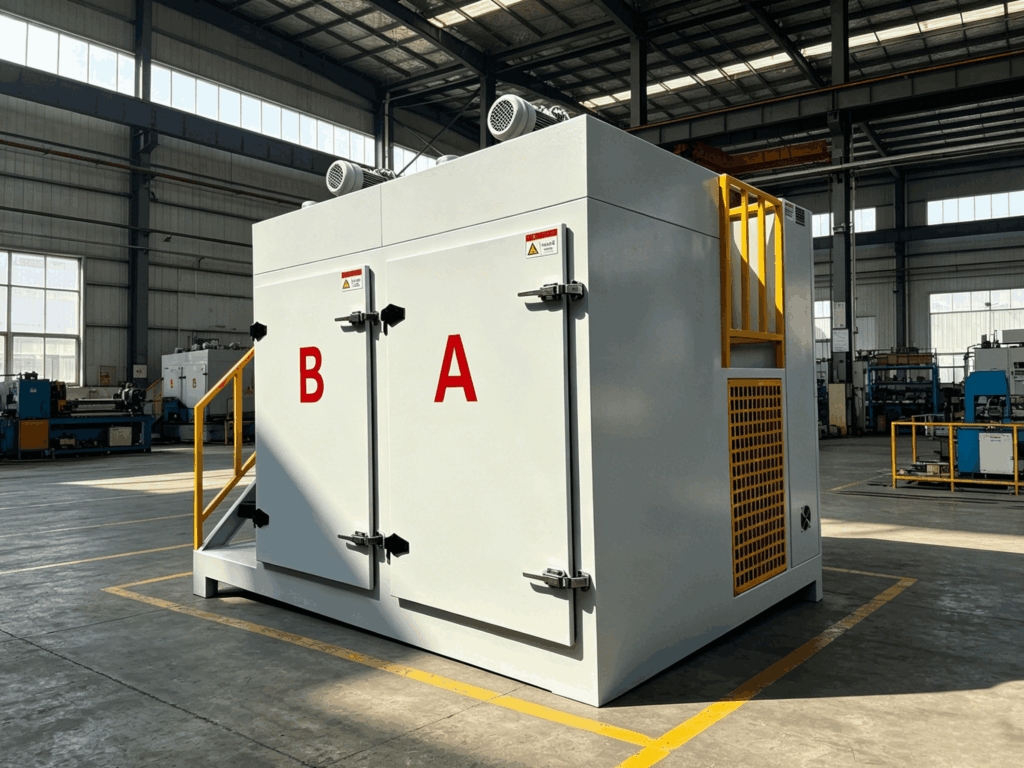

At the bottom of the B tank, there is an ultra-fast module heating device, which provides efficient direct heating. The mixing system adopts a special sealing device (patented technology) that is very durable, preventing the mixing shaft from clogging or spilling during high-speed operation.
It does not require frequent maintenance and reduces the waste caused by excessive maintenance frequency, significantly improving production efficiency.
Three-phase five-wire system with 380V; Frequency: 50Hz;(Voltage can be customized)

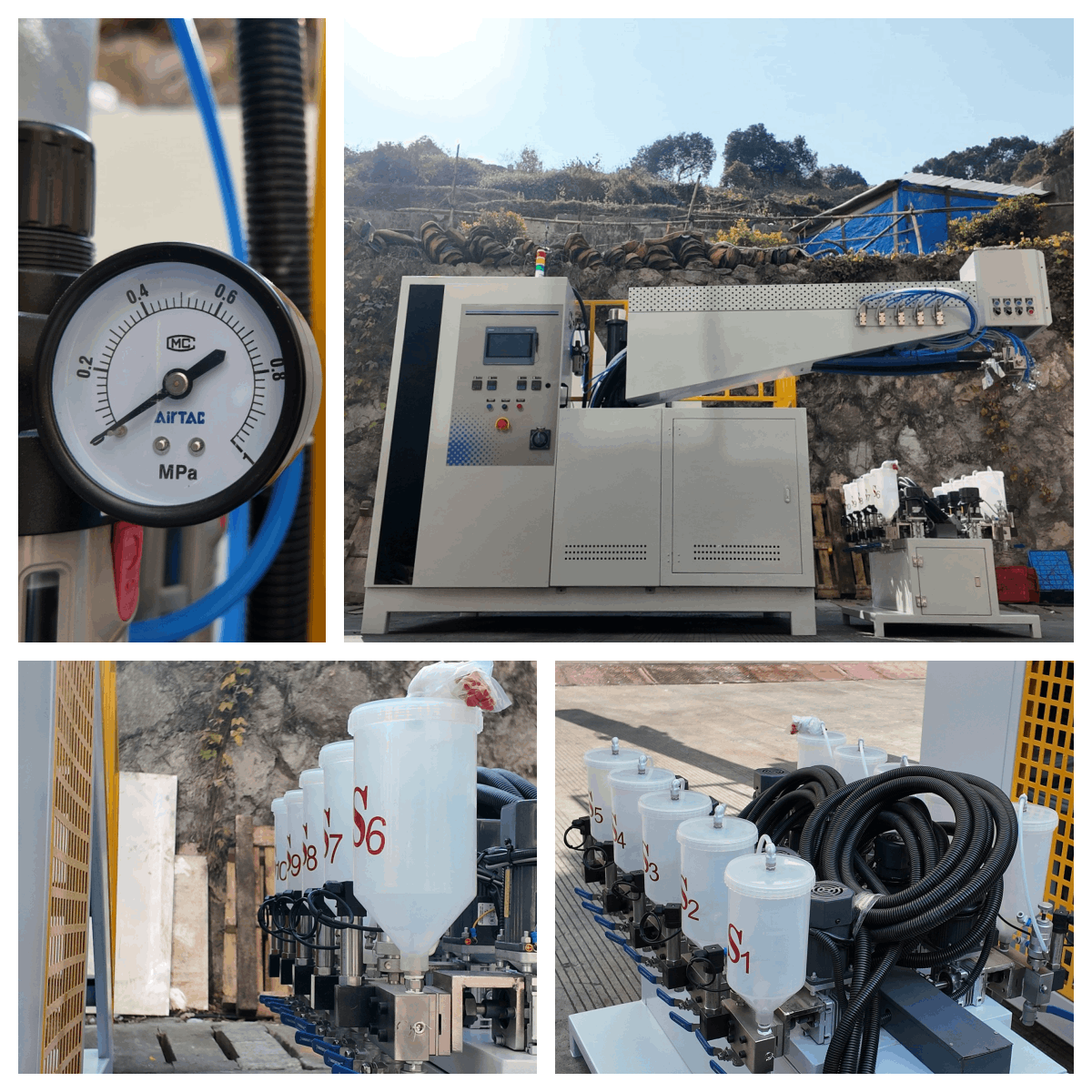

Air source: Inlet pipe outer diameter 8mm, pressure 0.4 – 0.6 MPa.
Environmental temperature: Constant temperature control
The installation site has no risk of fire or explosion, and there is no severe vibration.
