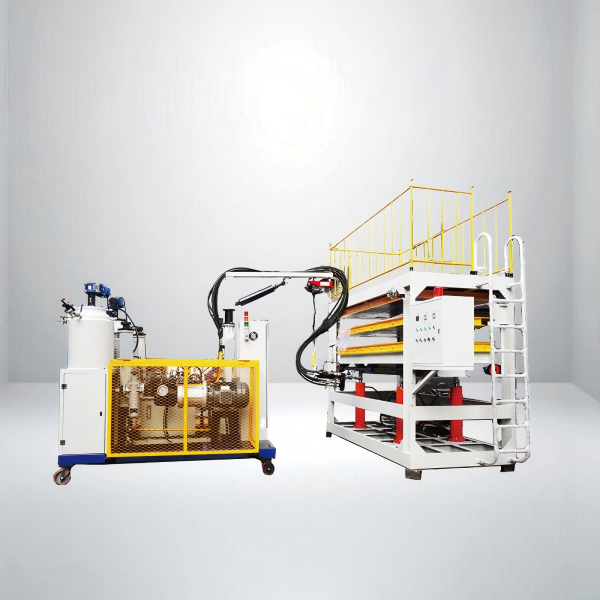

Intermittent polyurethane foam board complete set equipment | Universal for hard/semi-hard/soft | Automatic batching | One-piece moldin

This complete set of intermittent foaming board equipment is specially designed for the production of rigid, semi-rigid and soft polyurethane (PU) foaming boards. It adopts advanced intermittent foaming technology to achieve efficient and stable automated production. The equipment integrates functions such as raw material storage, precise measurement, mixed foaming, and curing and shaping, and is suitable for polyurethane products with various density and performance requirements.

Core advantages:

Multi-type compatibility - Flexible adaptation to rigid (high-density insulation boards), semi-rigid (automotive interiors), and soft (furniture padding) polyurethane foams.

High-precision batching system - dynamic measurement error ≤±1%, ensuring uniform foaming and defect-free finished products.

Intelligent temperature control and curing - PLC controls the heating and curing time to enhance the stability of the cell structure.

Modular design - The assembly line can be expanded according to production capacity requirements, and customized molds and dimensions are supported.

Energy conservation and environmental protection - The closed-mold foaming process reduces raw material waste and can be equipped with an exhaust gas recovery system.

Technical parameters:

Foaming method: Intermittent (batch production)

Applicable density range: 20-200kg/m³

Forming size: Customizable (Standard width 1.2m - 2.4m)

Control system: PLC+ touch screen (remote monitoring is optional)
