FEILONG PU MACHINE

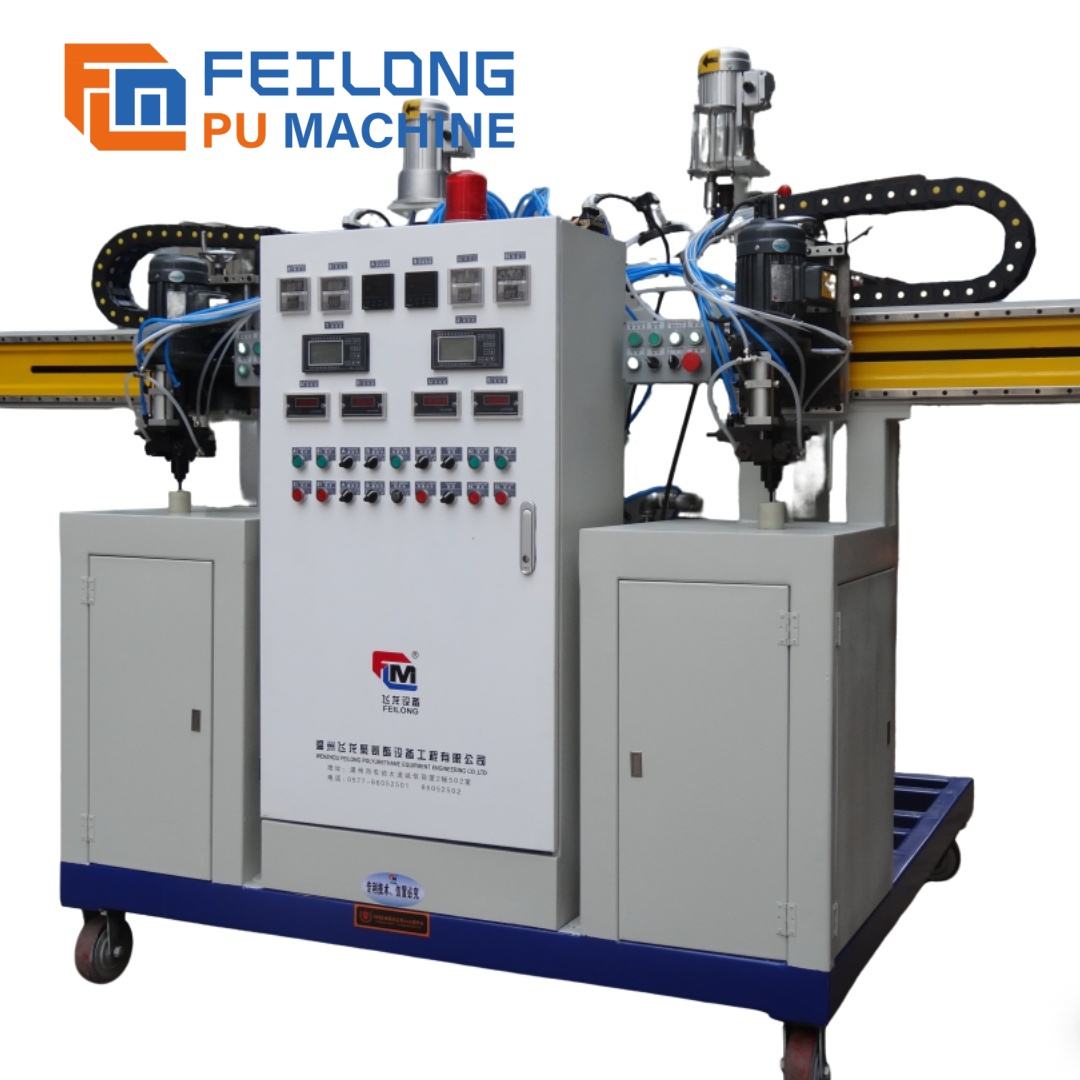

Multi-head sealed Line PU Casting Machine / Sealing Line High-precision Polyurethane Elastomer Pouring Equipment
Highlights at a glance
High Precision Casting: Produces precise sealing strips with minimal waste.
Multi-Head Design: Increases production efficiency by allowing simultaneous casting.
Polyurethane Elastomer: Ideal for durable and flexible sealing applications.
Sealing Strip Production: Ideal for manufacturing high-quality sealing products.
Industrial Grade: Robust construction suitable for heavy-duty industrial use.
Main purpose:
Industrial rubber rollers
Screen plates for mining
Hydraulic sealing ring
Photovoltaic guide wheel
Automotive steering shaft ball cup
Phone
+86 13567785285
Quailty Excellence
Core Performance
Excellence QC System
Provide high-quality products and services that exceed customer expectations.
High Scalability
A top-notch industry software development team provides you with first-class service.
Multi-dimensional Support
Professional technical support solutions provided by multiple industries and expert teams
Core Performance
Excellence QC System
Provide high-quality products and services that exceed customer expectations.
High Scalability
A top-notch industry software development team provides you with first-class service.
Multi-dimensional Support
Professional technical support solutions provided by multiple industries and expert teams
Key Attributes
Key Attributes
| Voltage | 380 V, Customized | Power(W) | 35kw |
| core components | PLC, Mixed head, Metering pump | warranty | 1 Year |
| machinery test report | Provided | video outgoing-inspection | Provided |
| place of origin | Zhejiang, China | brand name | FEILONG |
| Machine Type | PU elastomer casting machine | weight (kg) | 1000 |
| Produced products | Screen plate,Sealing element,Pipe lining,Wheels,Packing blocks | Material system | MDI,TDI,NDI,PPDI |
| Mixing ratio(MDI) | 100: 50-150 | Mixing ratio(TDI) | 100:6-20 |
| Mixing ratio(NDI) | 100: 2.5-8 | Mixing ratio(PPDI) | 100:80-120 |
| output | 0.1-500kg/min | Certification | CE/ISO |

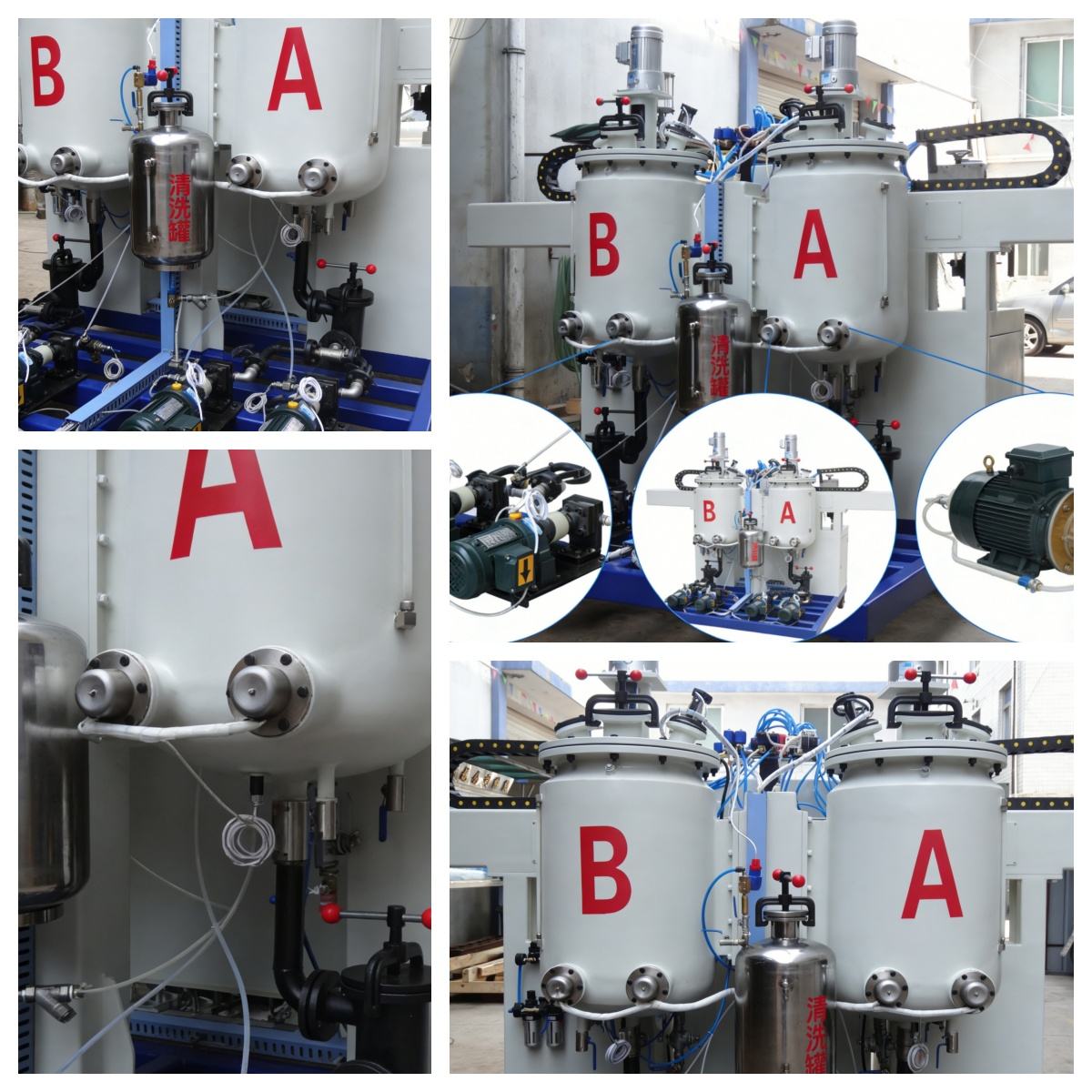

Equipped with high-precision low-speed gear pumps (error 3.5-5%), resistant to high temperatures (up to 450 degree C) and high pressure (10 MPa), ensuring accurate metering of the material system.
The pump body is made of tungsten steel. Its excellent resistance to high temperature and high pressure ensures that metering accuracy is not affected by changes in pressure or temperature within the equipment’s operating conditions.

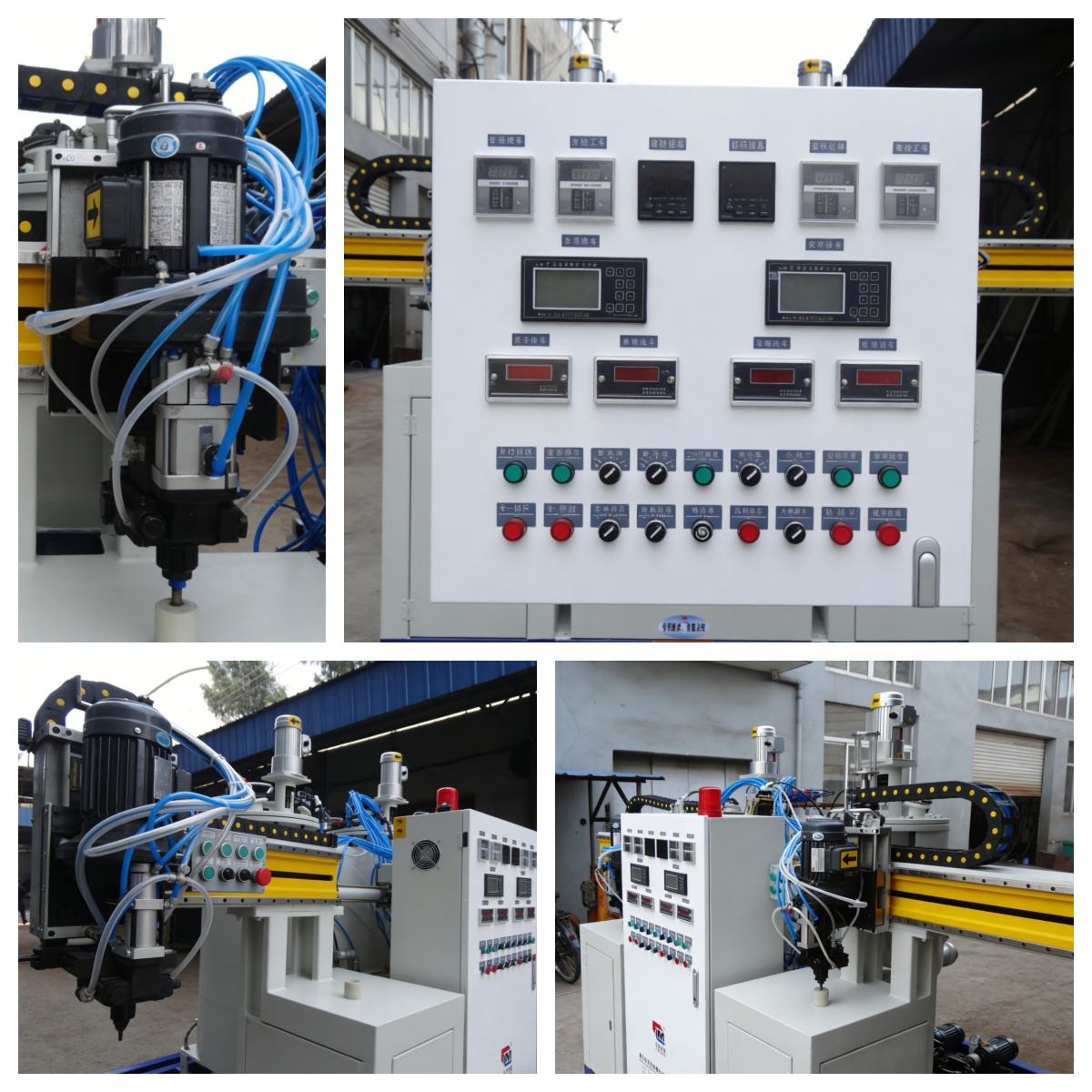

The machine head adopts a self-developed mixing device (patented technology). The mixing head features a specially designed structure for uniform mixing without bubbles, minimal material residue, and reduced costs.
A special pressure balancing adjustment device (patented technology) allows multiple mixing and casting methods (injection, hose casting, open casting), as well as timed and metered casting.

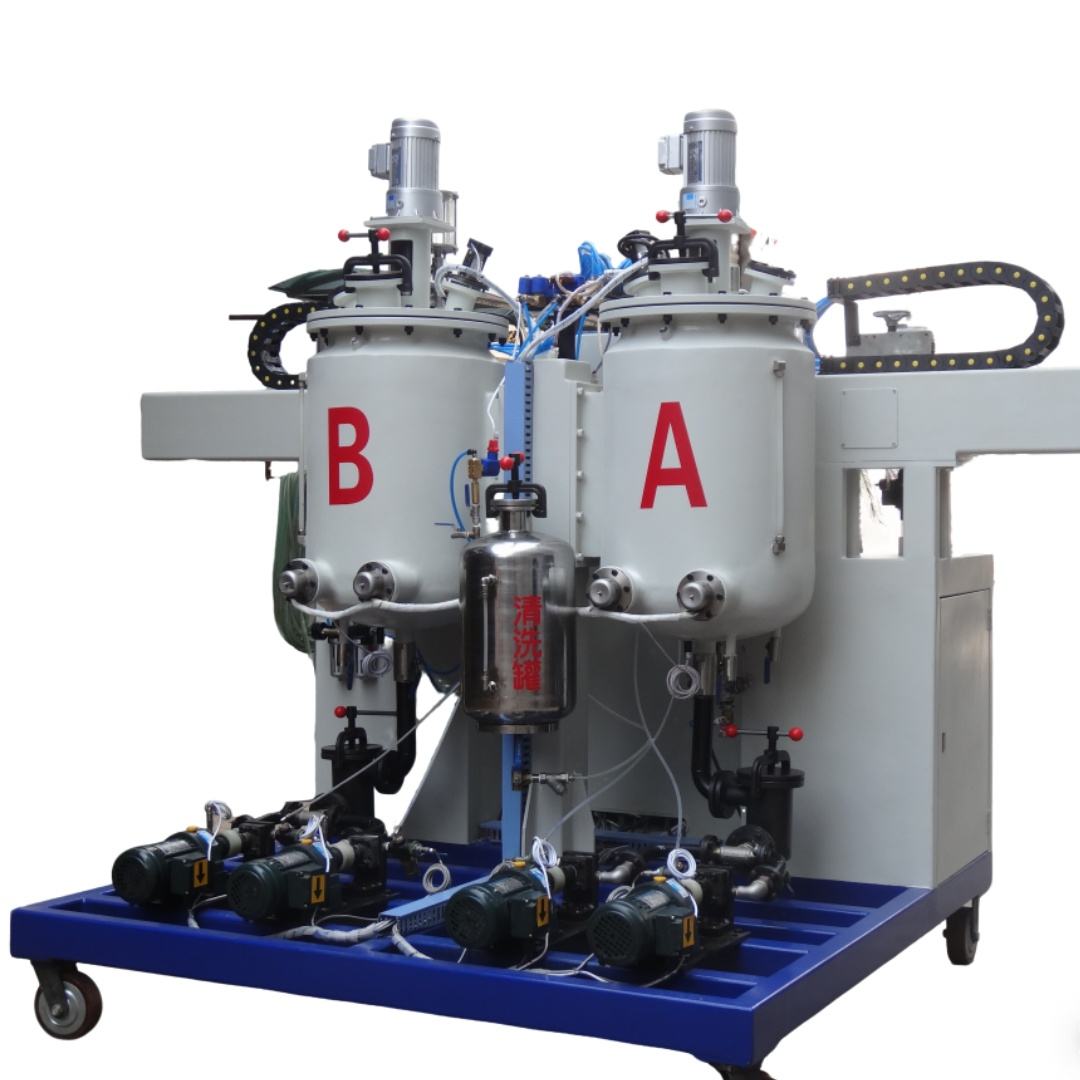

A rapid heating module is installed at the bottom of the B tank, enabling efficient and direct heating.
Three-phase five-wire system with 380V; Frequency: 50Hz;(Voltage can be customized)
Air source: Inlet pipe outer diameter 8mm, pressure 0.4 – 0.6 MPa.
Environmental temperature: Constant temperature control
The installation site has no risk of fire or explosion, and there is no severe vibration.
