FEILONG PU MACHINE
Liquid Rubber PU Elastomer Production Line – Complete Polyurethane Processing Equipment for Various PU Elastic Parts Production
Highlights at a glance
Full Turnkey Automatic Production Integrated feeding, mixing, casting, curing and forming process, one-stop solution for CPU polyurethane elastomer production, no extra equipment configuration required, greatly saving factory layout and procurement cost.
High Precision & Stable Forming Adopts advanced constant-temperature mixing and proportional feeding system, accurate material ratio control, uniform foaming and curing, ensures consistent hardness, density and wear resistance of finished CPU elastomer products.
Intelligent Easy Operation Equipped with PLC touch screen intelligent control panel, adjustable production parameters, simple operation, stable running, low failure rate, reduces reliance on senior technical workers.
Custom & amp; Reliable Service Supports non-standard customization according to customer output requirements and product specifications, provides full after-sales installation, commissioning and technical training service, meets diverse factory production demands.
Main purpose:
Industrial transmission / transportation
Mining / Construction Machinery
Cars / New Energy Vehicles
Printing and dyeing / Papermaking
Hydraulic / Sealing
Phone
+86 13567785285
Quailty Excellence
Core Performance
Excellence QC System
Provide high-quality products and services that exceed customer expectations.
High Scalability
A top-notch industry software development team provides you with first-class service.
Multi-dimensional Support
Professional technical support solutions provided by multiple industries and expert teams
Core Performance
Excellence QC System
Provide high-quality products and services that exceed customer expectations.
High Scalability
A top-notch industry software development team provides you with first-class service.
Multi-dimensional Support
Professional technical support solutions provided by multiple industries and expert teams
Key Attributes
Key Attributes
| Voltage | 380 V, Customizable | Power(W) | 60 KW |
| core components | PLC, Merering pump, Mixed head, Hydraulic system, Magnetic coupling motor | warranty | 1 Year |
| machinery test report | Provided | video outgoing-inspection | Provided |
| place of origin | Zhejiang, China | brand name | FEILONG |
| weight (kg) | 5000 |

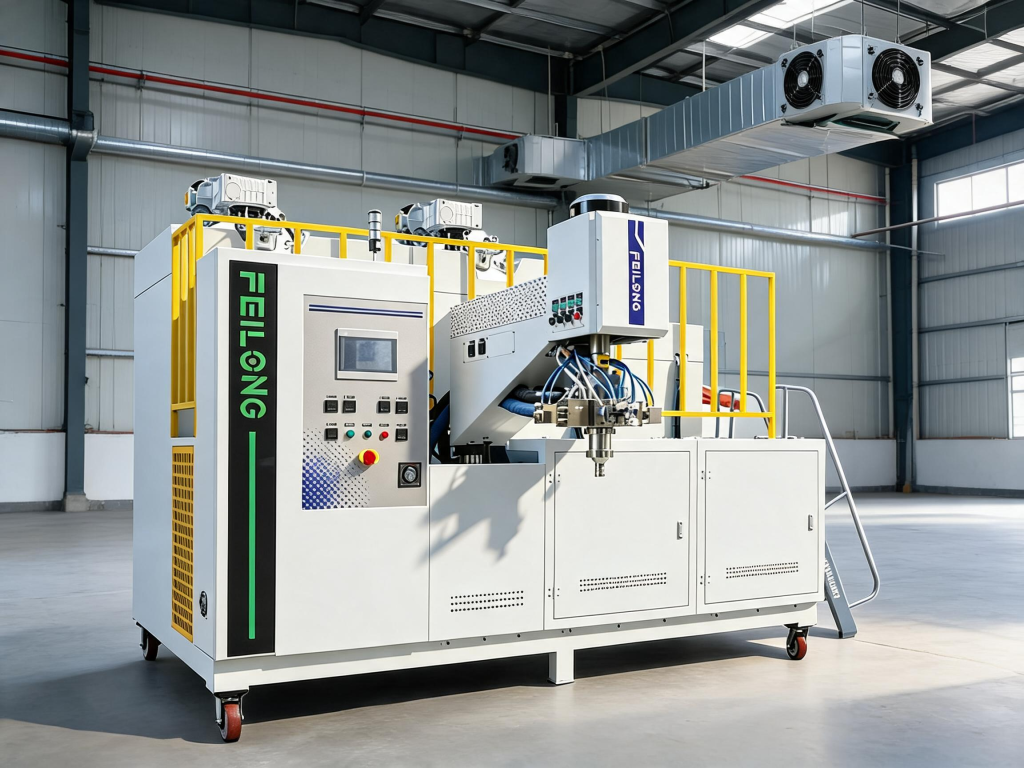

The core is to precisely mix the prepolymer (material A), chain extender (material B), and color pigment / additives (material C), heat it, perform vacuum defoaming, and then conduct high-speed mixing before injecting it into the mold. After curing, it forms a high-mobility, high-elasticity, and highly tear-resistant elastomer product. Different from ordinary PU foaming machines, it focuses on being dense and bubble-free, having high strength, and allowing customization of hardness (Shore A 60 to Shore D 80).

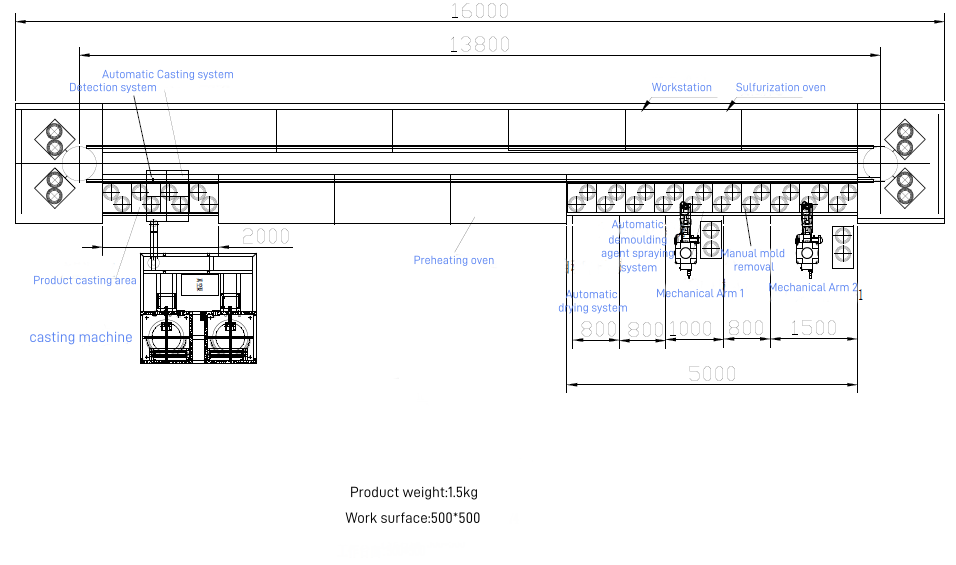

Machine composition: Raw material storage system, metering and conveying system, color paste system, mixing system, temperature control system, cleaning system, vacuum and feeding system, electrical control system

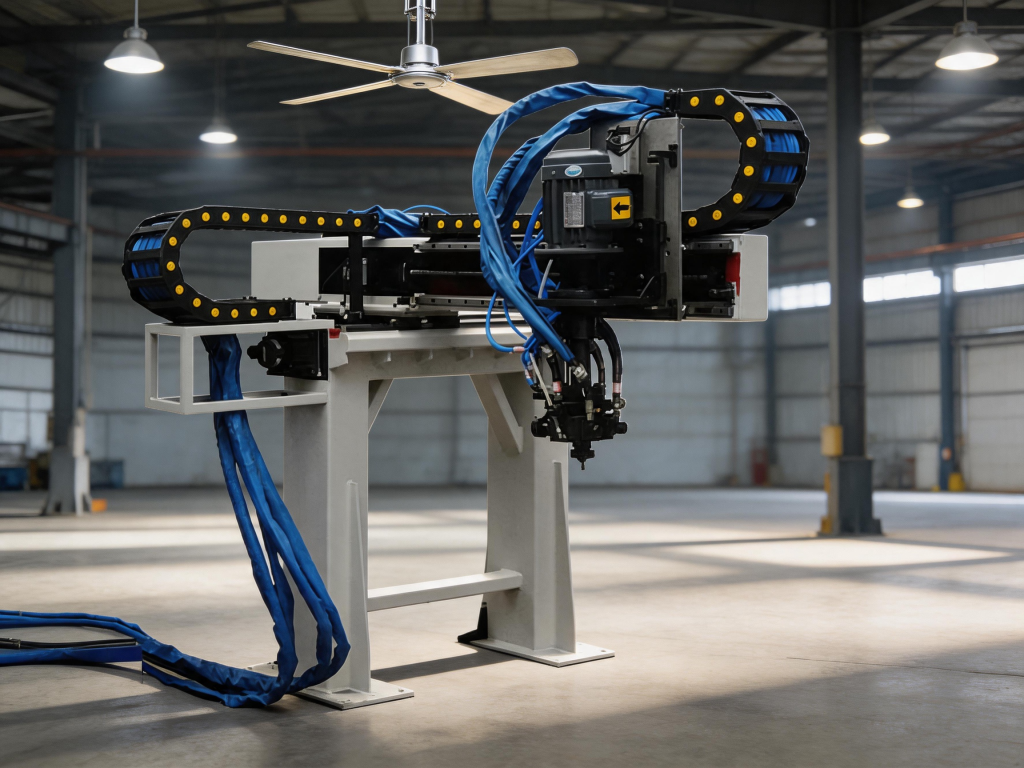

The mixing head design of the TDI and MDI pouring machines is integrated on a single pouring moving frame, enabling both simultaneous operation and separate operation.

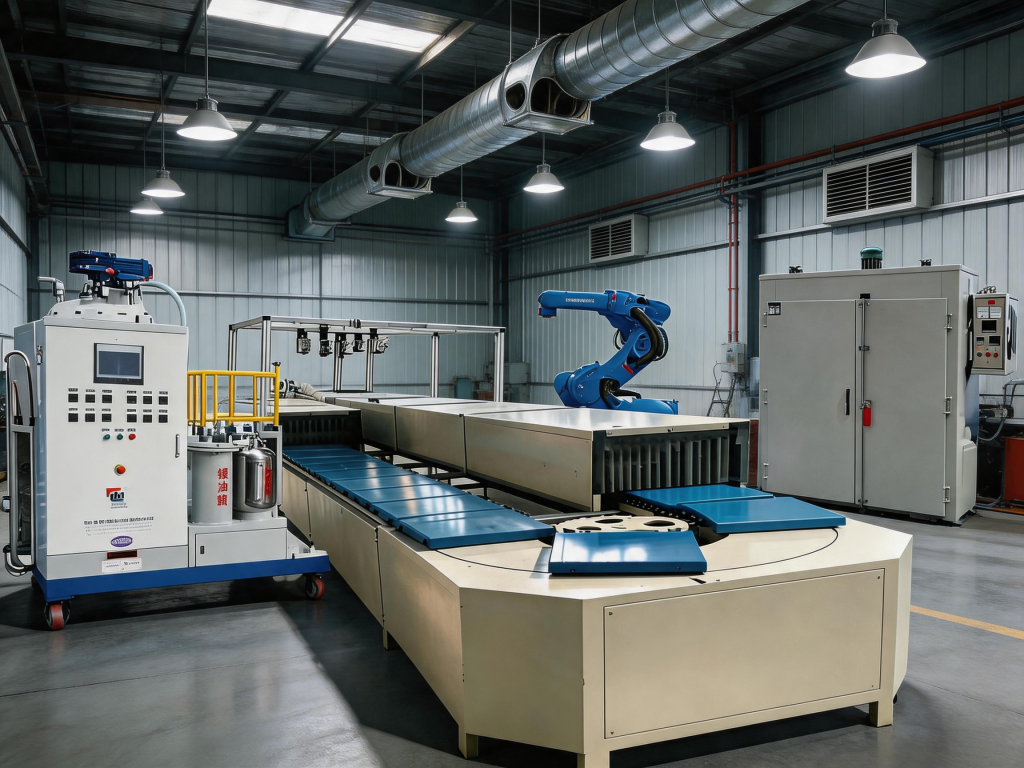

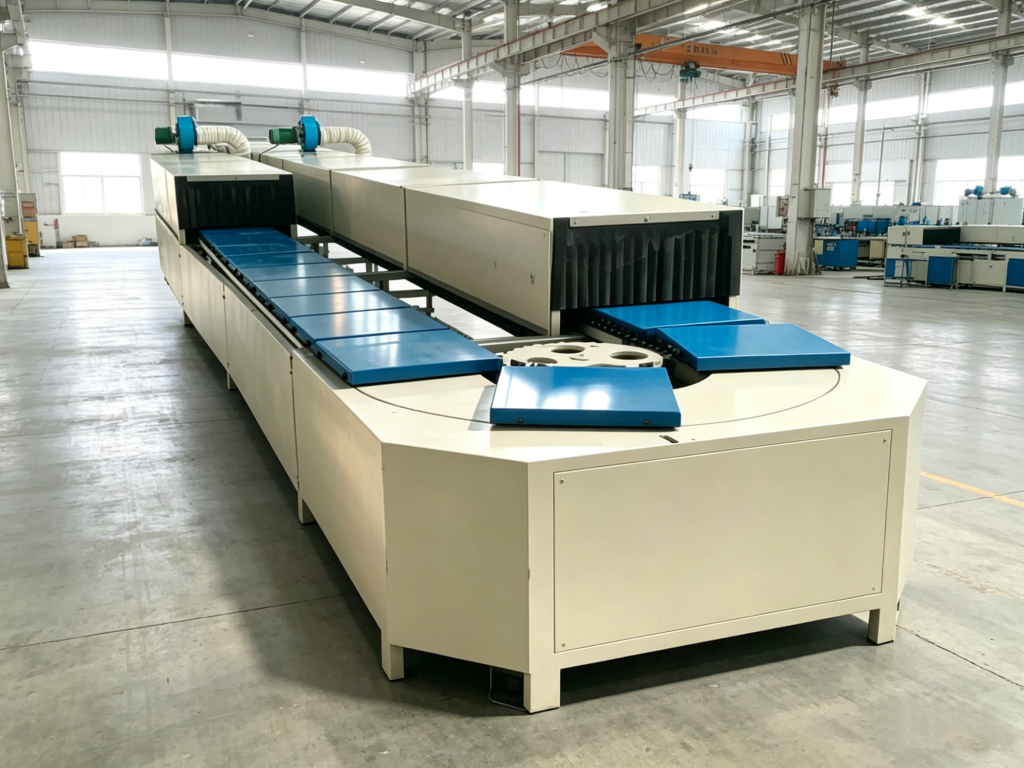

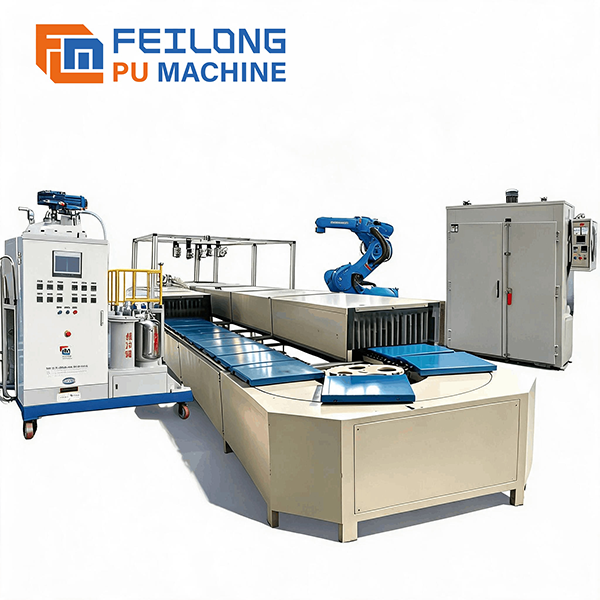

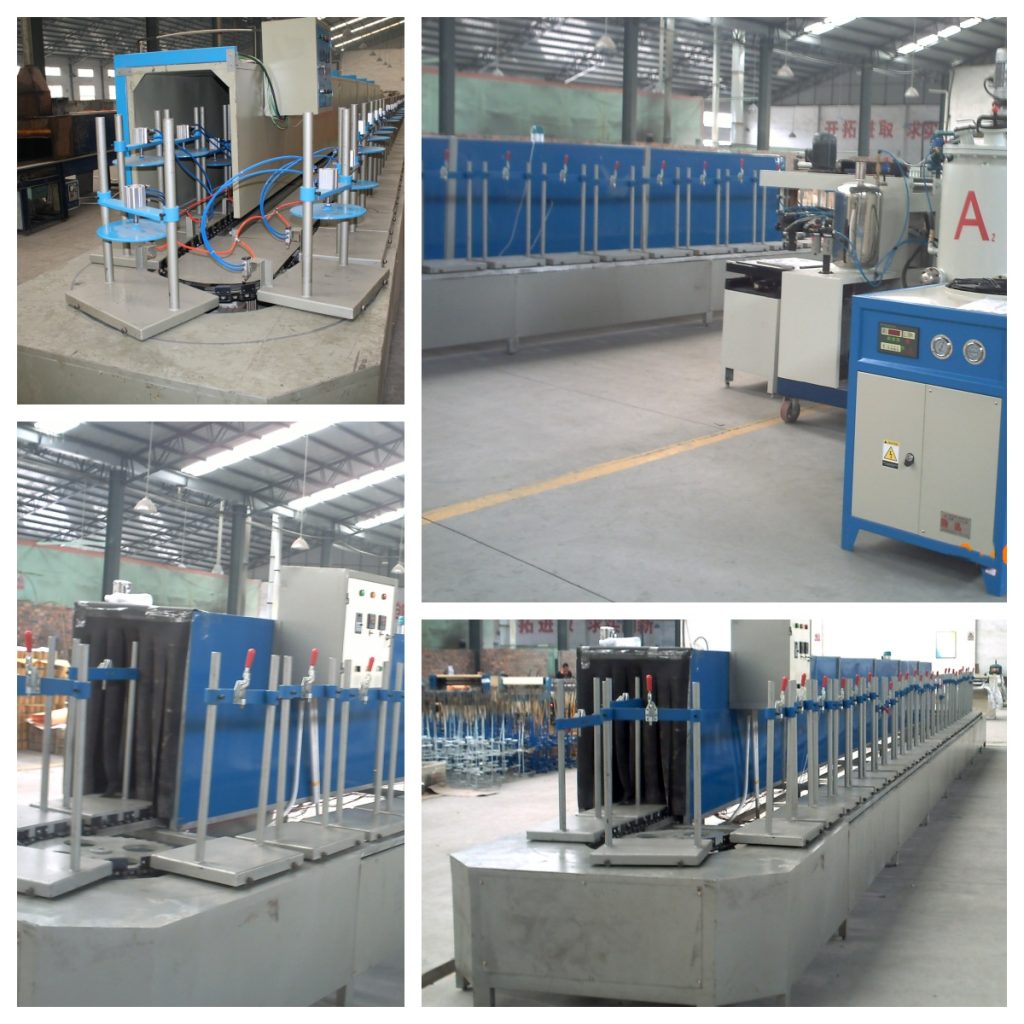

Compared with the disc-shaped assembly line, this circular assembly line occupies less space.
The reducer drives the mechanism and the rotational speed can be adjusted by the frequency converter.

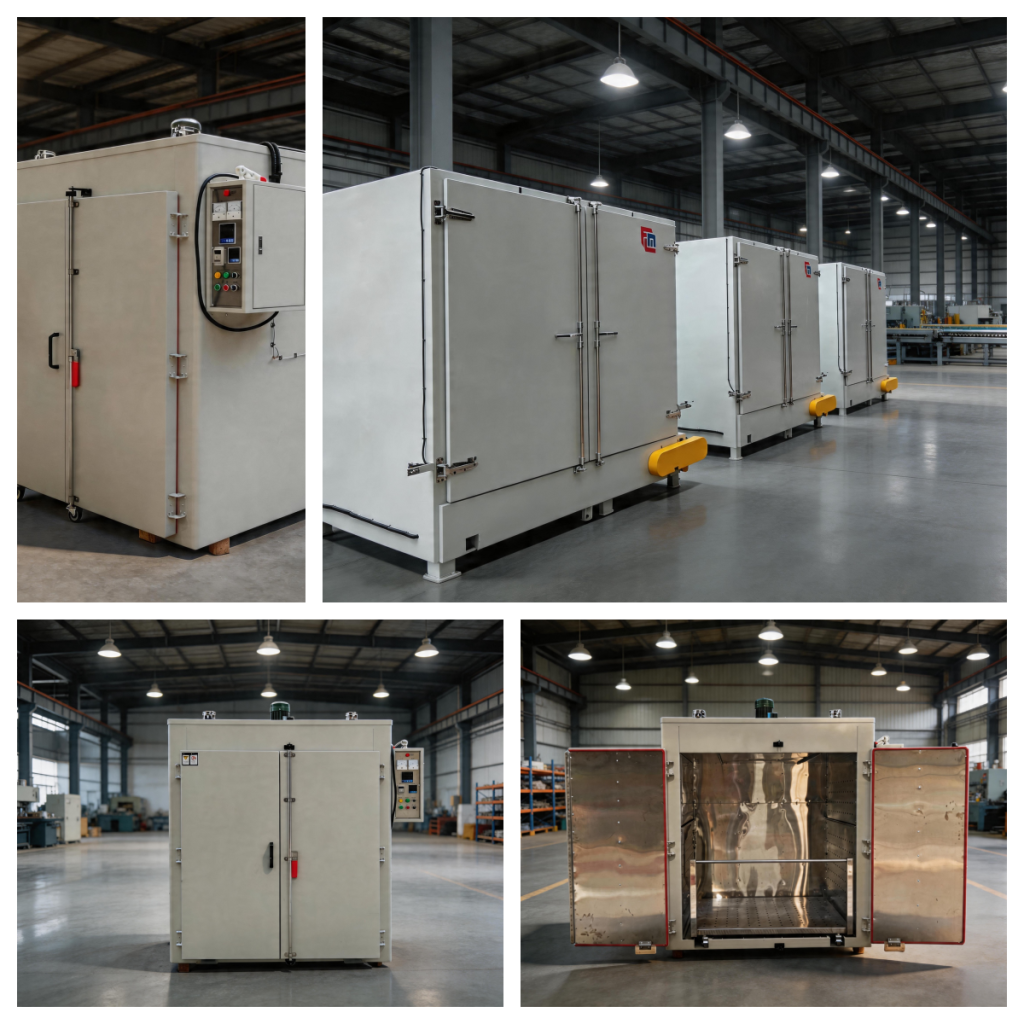

The heating in the oven is achieved through a fan circulation system, ensuring uniform temperature.
When the disc reaches the demolding station, the detection source detects this signal, and the signal is transmitted to the main PLC;
The PLC controls the mechanical hand to achieve automatic demolding;
When the mold reaches the demolding position, the mechanical hand initiates the action.

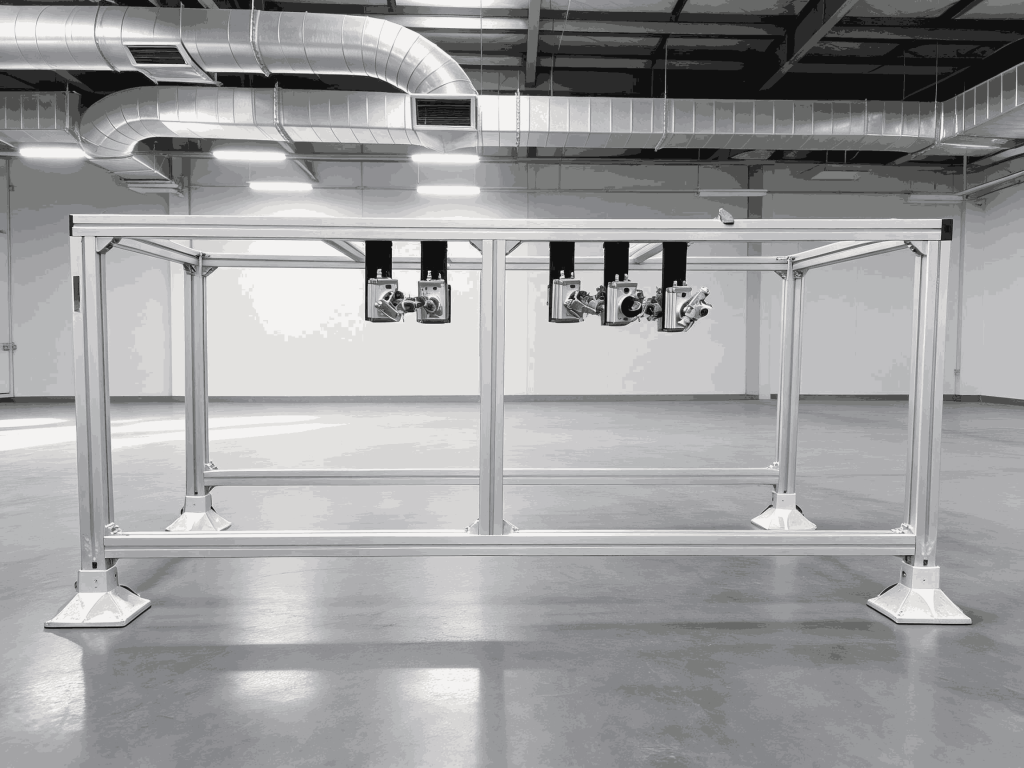

It is compatible with the assembly line molds and is controlled by the host PLC to achieve automatic tracking of the release agent spraying;
The spray gun adjusts the spraying range according to the air pressure to save costs;
The spray gun is fixed on a movable system.
Three-phase five-wire system with 380V; Frequency: 50Hz;(Voltage can be customized)
Air source: Inlet pipe outer diameter 8mm, pressure 0.4 – 0.6 MPa.
Environmental temperature: Constant temperature control
The installation site has no risk of fire or explosion, and there is no severe vibration.
