FEILONG PU MACHINE

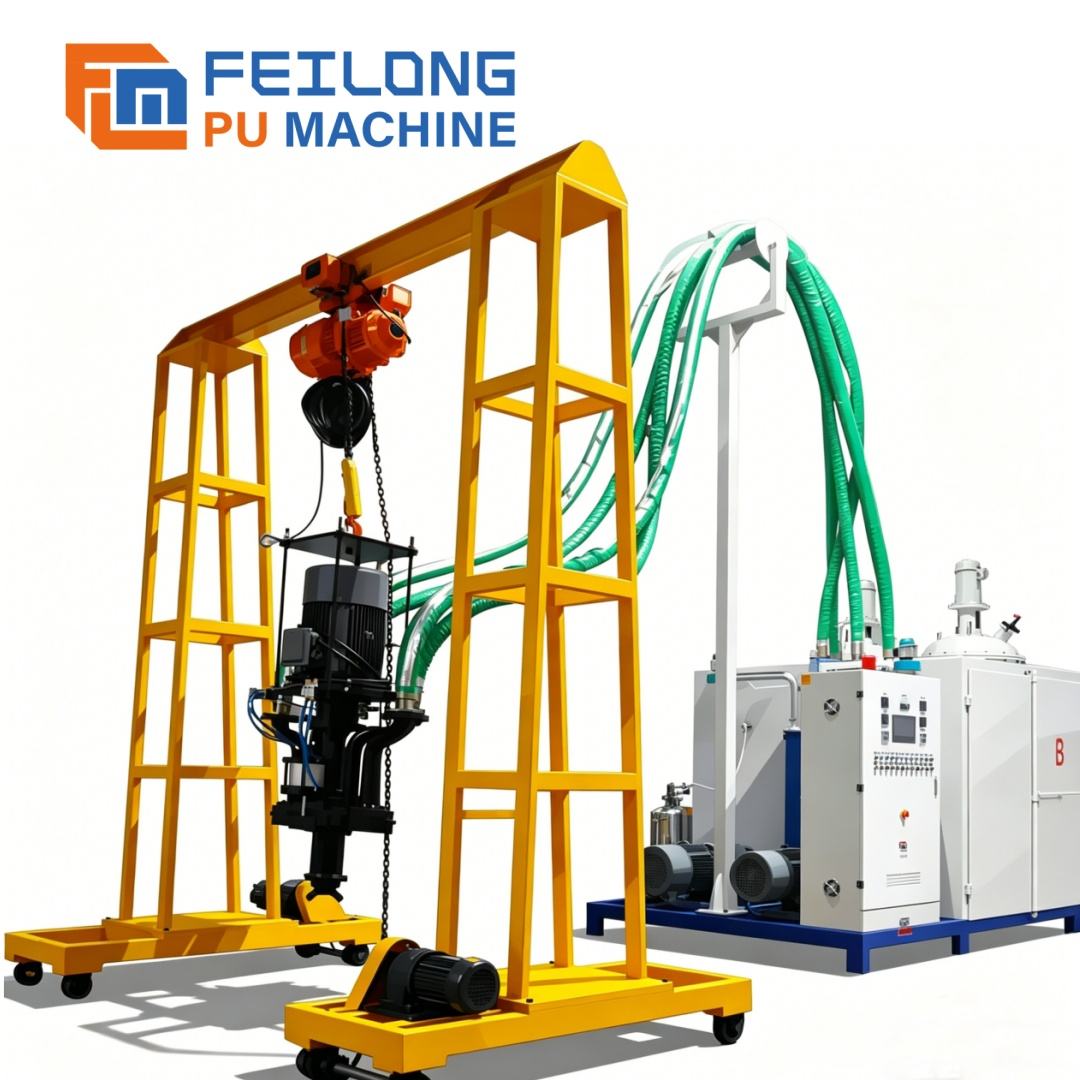

Extra-large PU Foaming Machine (low-pressure Type) Polyurethane Equipment for Hard Foam / Soft Foam / Memory Foam
Highlights at a glance
Full Foam Type Compatibility: Versatile to produce hard foam, soft foam and memory foam, fully meets diversified production needs of different polyurethane foam products with one machine.
Mature Low-Pressure Technology: Low-pressure working design features safe operation, no high-pressure leakage risk, low energy consumption and less equipment wear, saving long-term production costs.
Intelligent PLC Integrated Control: Equipped with intelligent control panel, supporting formula storage, one-click switching and parameter fine-tuning, easy operation and labor-saving.
Customized Industrial Solution: Supports personalized customization of machine output, flow rate, mold matching and overall configuration according to customer’s factory site and production demands.
Main purpose:
Box-type foaming
Hard foam insulation
Soft foam mattress
Ship’s stern bulkhead
Wood-like hard foam
Phone
+86 13567785285
Quailty Excellence
Core Performance
Excellence QC System
Provide high-quality products and services that exceed customer expectations.
High Scalability
A top-notch industry software development team provides you with first-class service.
Multi-dimensional Support
Professional technical support solutions provided by multiple industries and expert teams
Core Performance
Excellence QC System
Provide high-quality products and services that exceed customer expectations.
High Scalability
A top-notch industry software development team provides you with first-class service.
Multi-dimensional Support
Professional technical support solutions provided by multiple industries and expert teams
Key Attributes
Key Attributes
| voltage | 380 V, Customized | power (kw) | 35 kW |
| core components | PLC, Merering pump, Mixed head | warranty | 1 Year |
| machinery test report | Provided | video outgoing-inspection | Provided |
| brand name | FEILONG | place of origin | Zhejiang, China |
| weight (kg) | 2000 | Machine Type | Pu Foam Machine |
| Produced products | Car seat, Insulation material, Sofa cushion, Wooden imitation, Headrest | Foam product | PU foam, Rigid PU Foam, Soft PU foam, Microcellular foaming |
| Mixing ratio(Soft foaming) | 100: 20-35 | Mixing ratio(Rigid foaming) | 100: 80-120 |

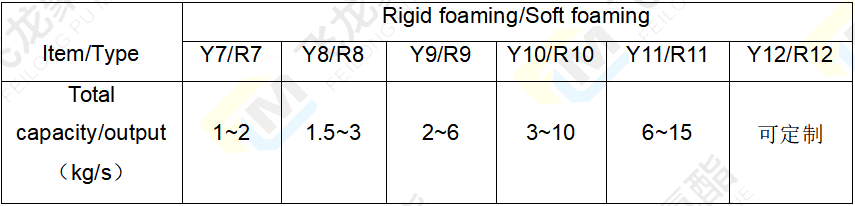

| Output | 60-900kg/min | Certification | CE/ISO |
Overview: This equipment is specifically designed for the foaming process of polyurethane hard or soft foam through the reaction of isocyanates and polyols. It is suitable for the production of polyurethane foam products formed by the reaction of isocyanates and polyols.
Used for manufacturing industrial refrigerators, cold storage panels, car seat cushions, headrests, mattresses, handrails, imitation wood furniture, floating structures, and other products.
The amount of discharge can be customized and the maximum can reach 1500KG per minute.
The pump body is made of tungsten steel, and within the process requirements of this equipment, its high-temperature and high-pressure resistance characteristics ensure that the measurement accuracy will not be affected by changes in pressure and temperature;
The mixing device of the machine head is independently developed (patent technology), and the mixing head adopts a blade-type mixing head (independently developed), which mixes evenly, discharges less, and saves costs.
The special balance pressure regulation device (patent technology) can realize different mixing and pouring methods (injection, hose pouring, open pouring), and can also be timed and quantitatively poured, which can be used for special processes with a wide range of mixing ratios. It can reduce the pressure of material A and increase the pressure of material B to achieve a balanced pressure for thorough mixing: eliminating the flow error of the measurement system, greatly improving the equipment’s measurement accuracy and stability; preventing material A with high viscosity from flowing into the B material pipe and causing blockage.
Produce : Any kinds of PU products.
Three-phase five-wire system with 380V; Frequency: 50Hz;(Voltage can be customized)
Air source: Inlet pipe outer diameter 8mm, pressure 0.4 – 0.6 MPa.
Environmental temperature: Constant temperature control
The installation site has no risk of fire or explosion, and there is no severe vibration
High-Performance Custom PU
Performance Benchmarking
R&D Powerhouse
Leveraging a national-level R&D center and Academician Workstation with over 50 national patents.
Standard Setter
Leading the drafting of two industry standards, cementing a dominant position in the polyurethane equipment sector.
Superior Performance
Delivering industry-leading precision, stability, and energy efficiency to meet global demands.
Industry Solutions
Application Fields
Leveraging 40 years of PU expertise to provide high-standard, customized total solutions for key global industries.
34+
YEARs IN
THE INDUSTRY
Mining & Metallurgy
Engineered for the toughest environments. Our PU equipment delivers superior abrasion resistance and impact absorption, significantly extending the service life of critical components in mineral processing and steel production.
Defense & Research
Providing tactical-grade polymer solutions and advanced material research to support critical defense infrastructure and national security operations.
Rail Transit
Custom-engineered components for high-speed rail and urban transit, focusing on vibration dampening and noise reduction.
Wheel & Tire
Heavy-duty industrial wheels and high-performance tires formulated with superior abrasion resistance for warehouse logistics.
Civil & Industrial
Advanced polyurethane applications for large-scale construction and industrial manufacturing, ensuring durability under stress.
Marine & Shipping
Saltwater-resistant and anti-corrosive PU coatings and components designed to protect maritime assets in challenging environments.
Foam Solutions
Innovative foam technologies providing world-class thermal insulation and protective packaging for global supply chains.
Home & Decor
Merging high-end aesthetics with industrial durability, redefining modern living spaces with sustainable materials.
Precision Sectors
Micro-precision molded components for medical and electronic sectors where zero-tolerance accuracy is the standard.
Mining & Metallurgy
Engineered for the toughest environments. Our PU equipment delivers superior abrasion resistance and impact absorption, significantly extending the service life of critical components in mineral processing and steel production.
Defense & Research
Providing tactical-grade polymer solutions and advanced material research to support critical defense infrastructure and national security operations.
Rail Transit
Custom-engineered components for high-speed rail and urban transit, focusing on vibration dampening and noise reduction.
Wheel & Tire
Heavy-duty industrial wheels and high-performance tires formulated with superior abrasion resistance for warehouse logistics.
Civil & Industrial
Advanced polyurethane applications for large-scale construction and industrial manufacturing, ensuring durability under stress.
Marine & Shipping
Saltwater-resistant and anti-corrosive PU coatings and components designed to protect maritime assets in challenging environments.
Foam Solutions
Innovative foam technologies providing world-class thermal insulation and protective packaging for global supply chains.
Home & Decor
Merging high-end aesthetics with industrial durability, redefining modern living spaces with sustainable materials.
Precision Sectors
Micro-precision molded components for medical and electronic sectors where zero-tolerance accuracy is the standard.
Total Solution
Full-Cycle Delivery Assurance
01
02
03
Design & Engineering
Turn your 3D CAD files into reality. We provide expert material selection and feasibility feedback to ensure your PU design is optimized for high-performance production.
Tooling & Prototyping
From precision mold creation to multi-material sample testing. We validate every detail through rigorous prototyping to ensure a flawless foundation for mass production.
Production & Quality Control
Efficient scaling from small batches to full-scale production. With strict inspection and global logistics, we deliver certified high-quality PU components directly to your facility.
Full-Cycle Delivery Assurance
01
02
03
Design & Engineering
Turn your 3D CAD files into reality. We provide expert material selection and feasibility feedback to ensure your PU design is optimized for high-performance production.
Tooling & Prototyping
From precision mold creation to multi-material sample testing. We validate every detail through rigorous prototyping to ensure a flawless foundation for mass production.
Production & Quality Control
Efficient scaling from small batches to full-scale production. With strict inspection and global logistics, we deliver certified high-quality PU components directly to your facility.
Pre-sales & After-sales
Full-Service Support
From precision mold engineering and custom OEM solutions to worldwide on-site technical guidance. We provide a closed-loop support system that ensures your production excellence from initial design to long-term operational success.
99%
Satisfaction service
12
Warranty time
Pre-sale Service
Based on the customer’s products, we provide a full range of technical support including process support, raw material recommendations, mold resources, and complete equipment support, ensuring that the customer has no worries.
Mid-sale Service
We ensure timely delivery through strict operational protocols and cross-functional synergy. With a standard 1–3 month lead time and complimentary wear parts, we guarantee your production starts on schedule.
After-sales Service
One-year warranty with 48-hour rapid response. Beyond the term, parts are supplied at base cost. We track every machine to ensure seamless, optimized production.
Other Special
We specialize in custom mold manufacturing and OEM solutions. Our technical empowerment includes on-site training at our facility or expert engineering support at your location, ensuring your team masters every operational detail.
Qualifications
Global Certifications
Global Standards & Compliance
Certified excellence for a global market. Our equipment and processes strictly adhere to international safety and quality benchmarks, ensuring seamless integration into high-standard production lines worldwide.
Global Certifications
Automated Production
Smart Manufacturing: Strict Standards
Where precision meets scale. Our facility integrates automated processing with rigorous quality benchmarks, transforming high-grade raw materials into industry-leading PU machinery through optimized industrial workflows.
Micron-Level Precision Control
Advanced PLC & High-Frequency Sensing. Achieve unmatched pouring consistency for high-performance manufacturing.
End-to-End Modular Engineering
From industrial rollers to strategic defense. Custom-engineered modular systems with seamless scalability and worldwide support.
Smart Manufacturing: Strict Standards
Where precision meets scale. Our facility integrates automated processing with rigorous quality benchmarks, transforming high-grade raw materials into industry-leading PU machinery through optimized industrial workflows.
Micron-Level Precision Control
Advanced PLC & High-Frequency Sensing. Achieve unmatched pouring consistency for high-performance manufacturing.
End-to-End Modular Engineering
From industrial rollers to strategic defense. Custom-engineered modular systems with seamless scalability and worldwide support.
