FEILONG PU MACHINE
Backrest Automatic Foaming Production Line – Foaming Machine / Assembly Line / Mechanical Hand / Opening and Closing Film Frame
Highlights at a glance
Professional line designed exclusively for seat backrest PU foam mass production
Full configuration: high pressure foamer, rotary disc line, auto mold frame, robot spray unit
Automatic release agent spraying via manipulator, consistent spraying effect
Automated molding process, high output, stable foam dimension & density
Customizable solutions
Main purpose:
Automotive PU foam backrest pads
Car interior molded foam cushions
RV seat integral foam blanks
Sofa backrest
Seat backrest
Phone
+86 13567785285
Quailty Excellence
Core Performance
Excellence QC System
Provide high-quality products and services that exceed customer expectations.
High Scalability
A top-notch industry software development team provides you with first-class service.
Multi-dimensional Support
Professional technical support solutions provided by multiple industries and expert teams
Core Performance
Excellence QC System
Provide high-quality products and services that exceed customer expectations.
High Scalability
A top-notch industry software development team provides you with first-class service.
Multi-dimensional Support
Professional technical support solutions provided by multiple industries and expert teams
Key Attributes
Key Attributes
| Foam Product | Polyurethane Foam | Application | Backrest cushion, Seat cushion |
| Voltage | 380 V, Customizable | Power(W) | 50 KW |
| core components | PLC, Merering pump, Mixed head, Hydraulic system, Magnetic coupling motor | warranty | 1 Year |
| machinery test report | Provided | video outgoing-inspection | Provided |
| place of origin | Zhejiang, China | brand name | FEILONG |
| weight (kg) | 5000 |

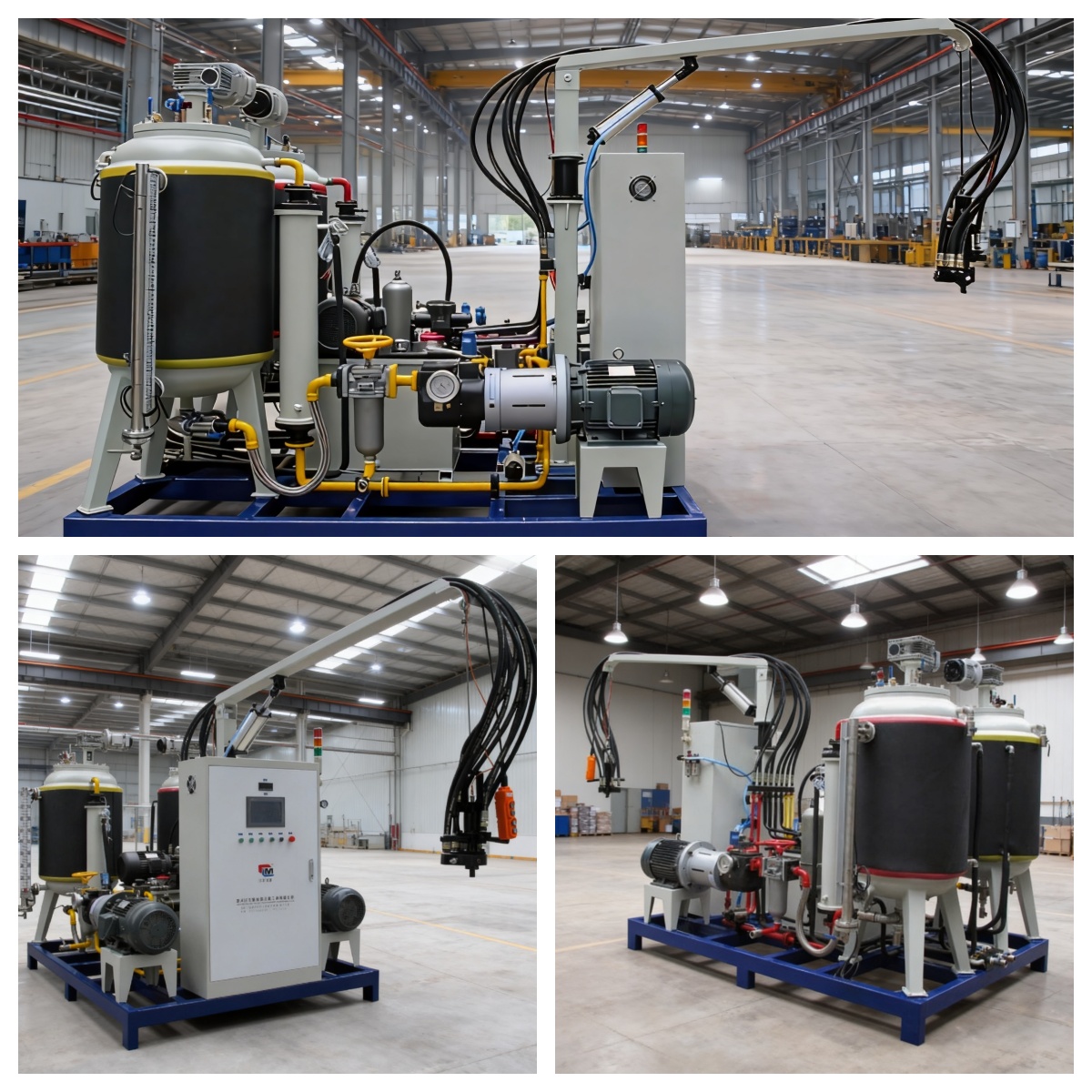

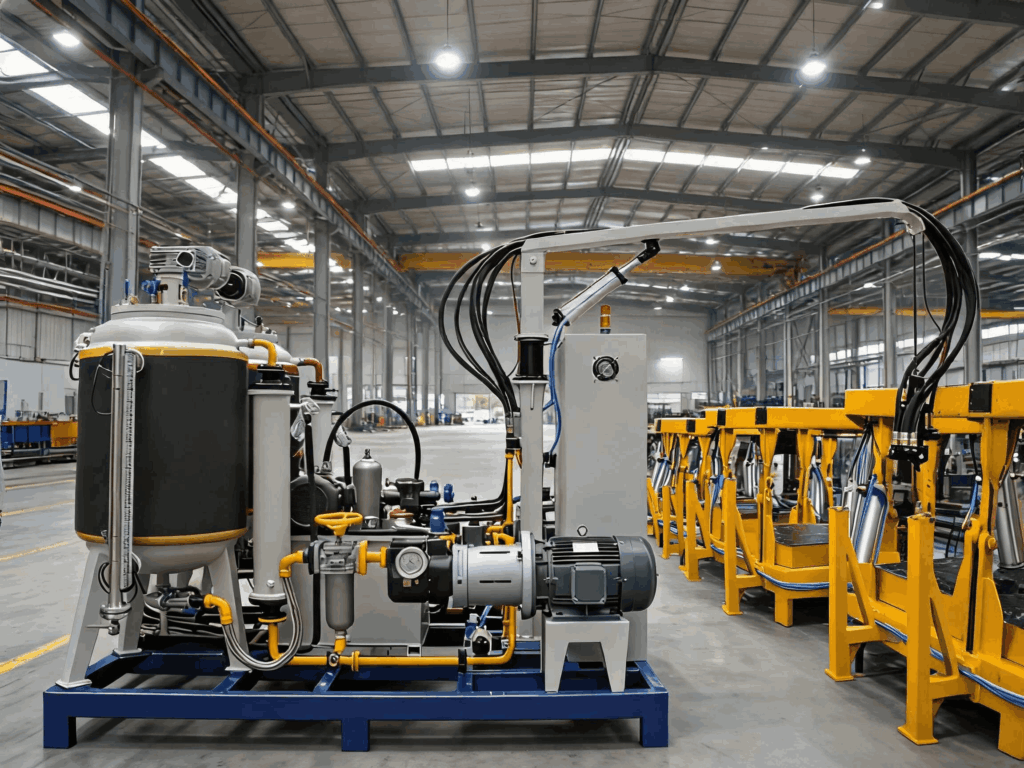

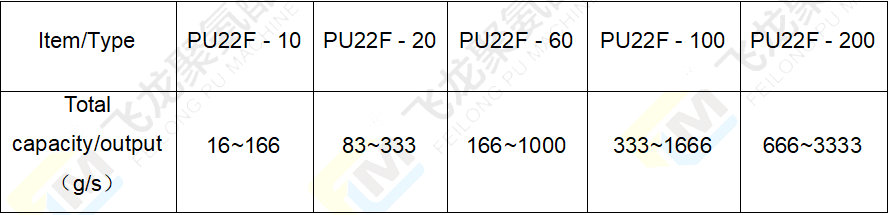

The production line consists of a two-component high-pressure foaming machine, a disc conveyor line, an automatic mold opening and closing frame, and a mechanical hand automatic spray demolding agent system.
The production line and the high-pressure machine are controlled in a coordinated manner through touch screens.
Machine composition: Raw material storage system, metering conveying system, mixing system, automatic pouring machine system with robotic arm, hydraulic system, temperature control system, automatic feeding system, electrical control system

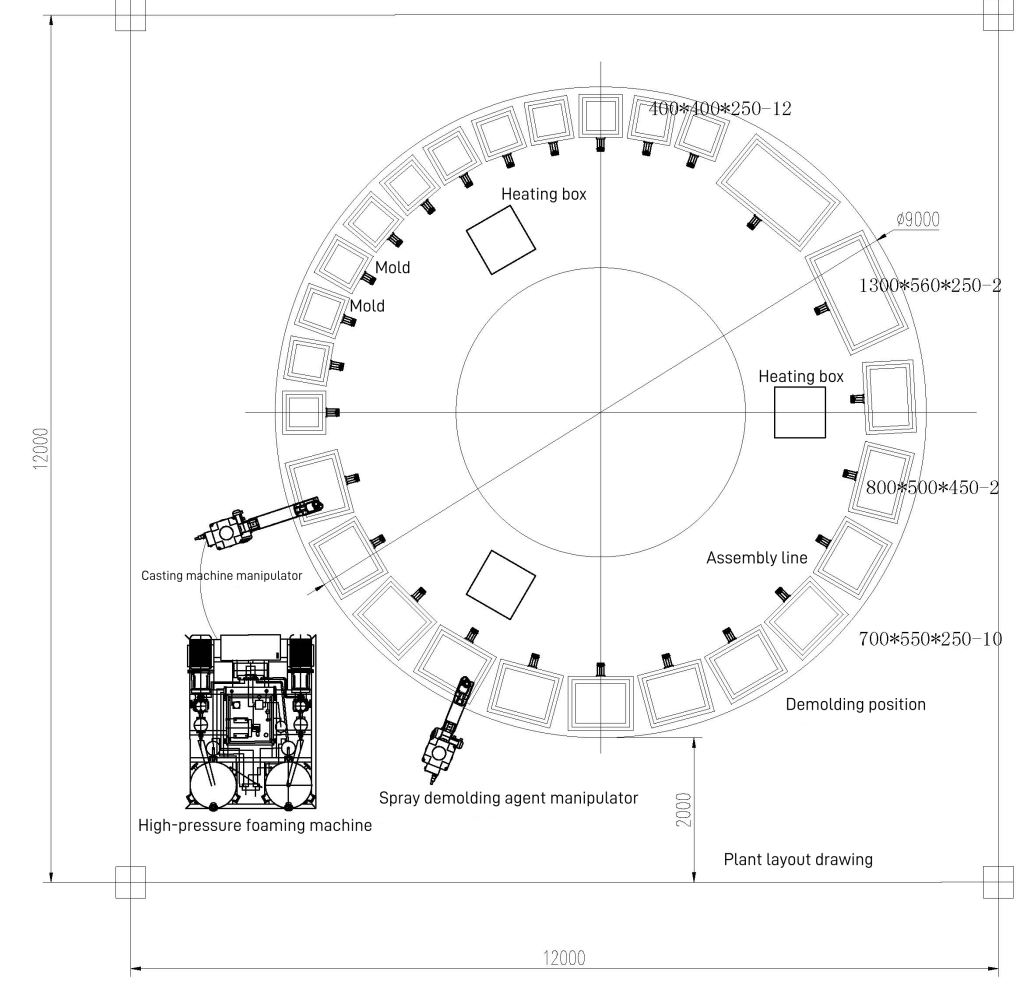

The fully automatic disc-shaped seat foam molding line can produce products of different densities and types simultaneously, such as backrests and headrests.
Main structure explanation:

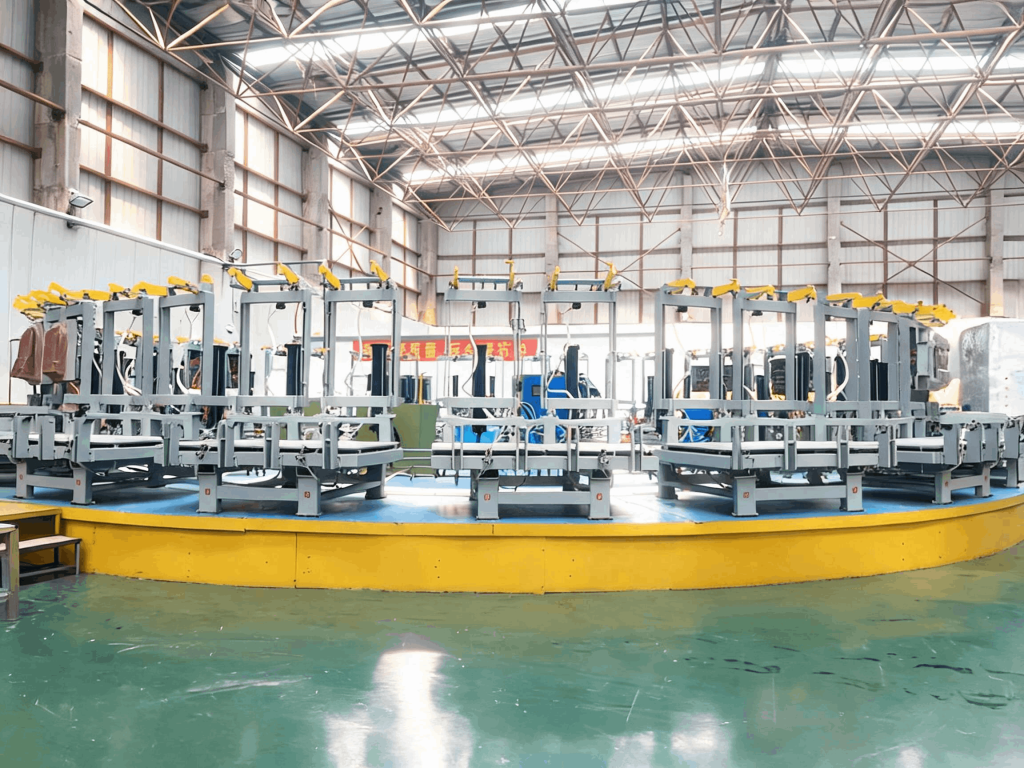

The disc assembly line is composed of a rotating platform, an air-electric rotating device, a piping device, a transmission device, a positioning device, a mold frame airway control system, a mold frame installation base plate and an electrical part, etc.

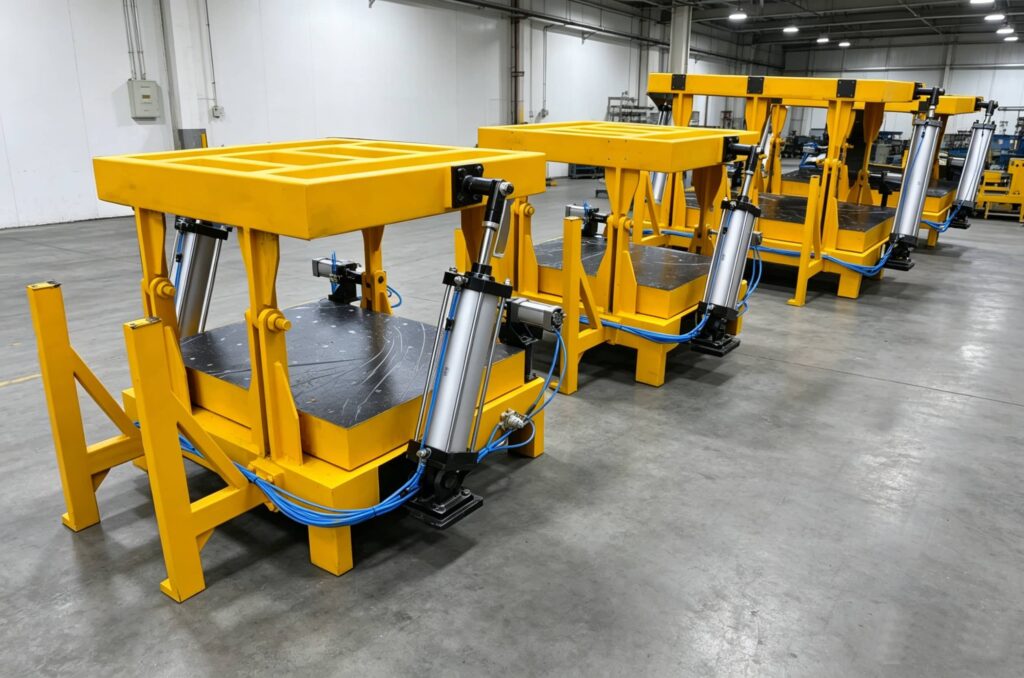

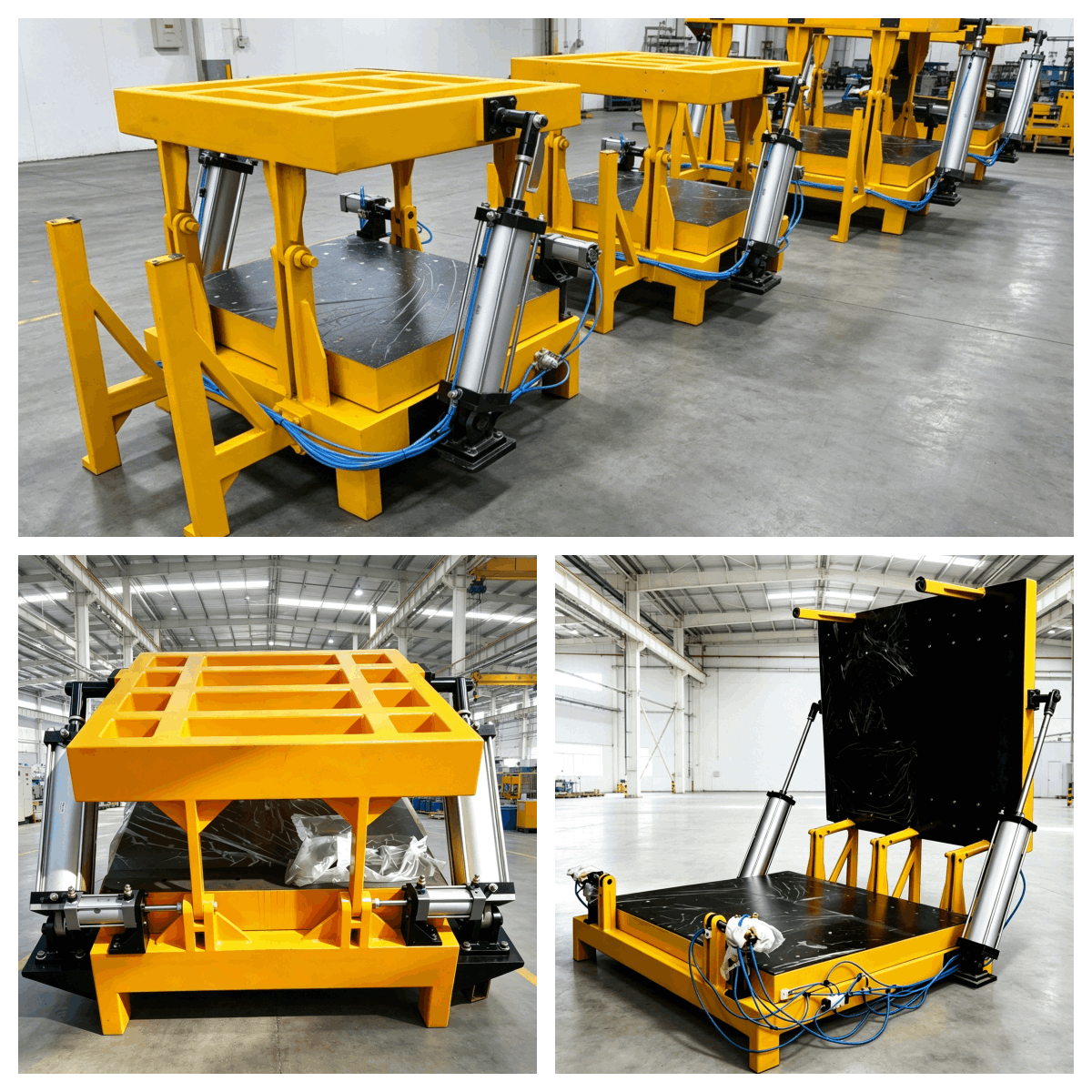

The mold frame is of a custom type and is mainly used for opening and closing large molds. It is convenient to operate and saves labor costs.
The mold frame is customized, and its size is designed according to the size of the mold.
The upper and lower mold frames can accommodate different molds within a fixed size range.
The cylinder has sufficient clamping force.
The mold frame starts by being connected to the cylinder through a linkage, and can operate automatically; at the same time, the cylinder is controlled by mechanical linkage to rotate the mold frame to open and close, and perform the required actions as required.

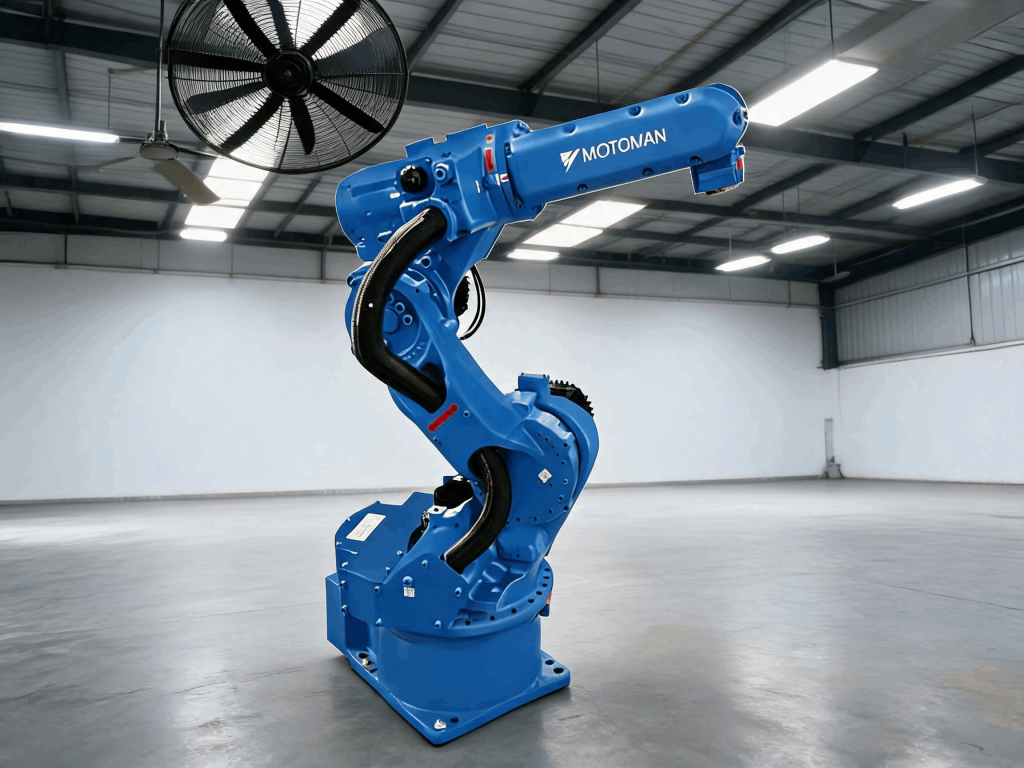

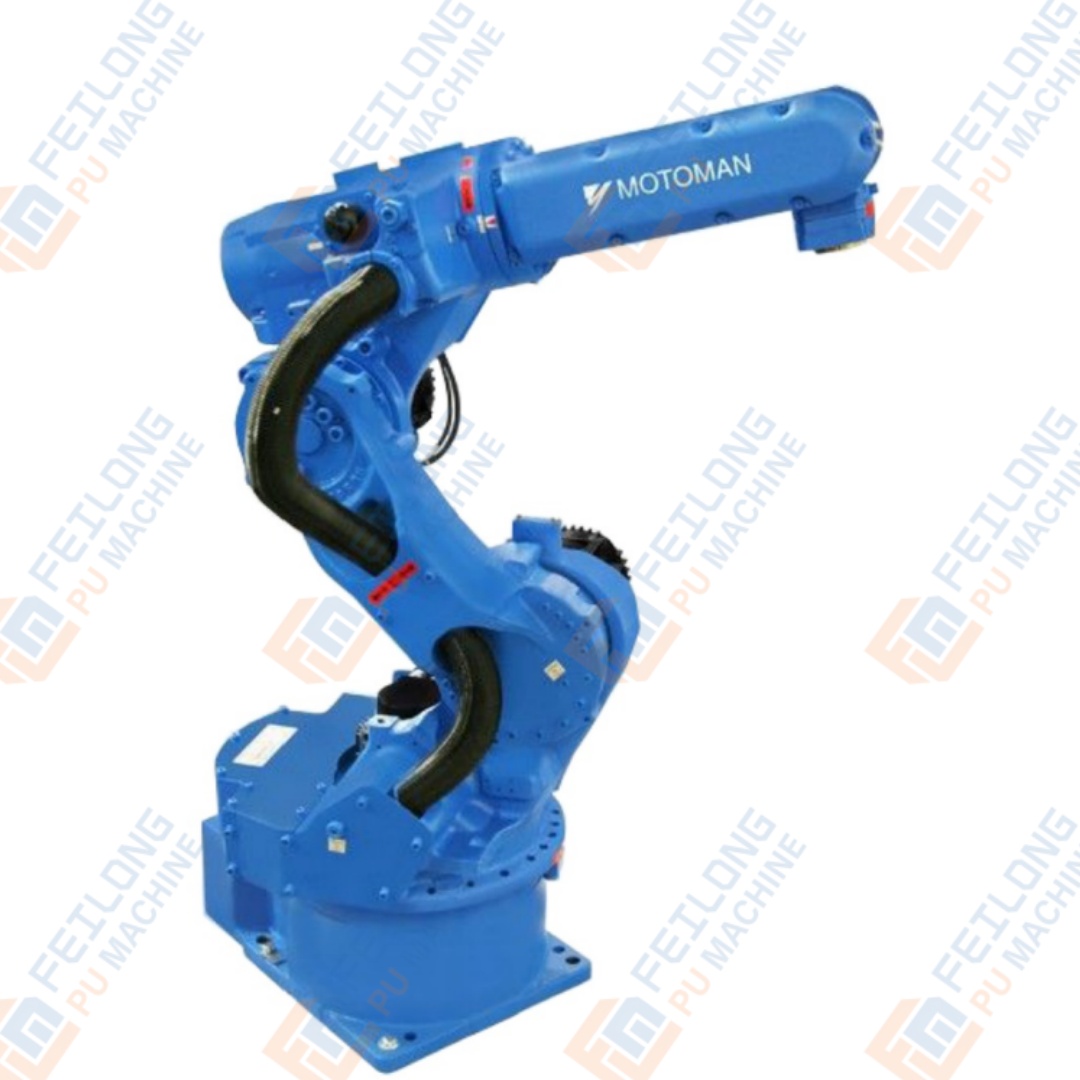

It is mainly used for the automatic spraying of release agents inside molds. The spraying is uniform, facilitating mold removal and saving labor.
System composition: Manipulator, spray gun, storage tank, safety protection, intelligent control system
Three-phase five-wire system with 380V; Frequency: 50Hz;(Voltage can be customized)
Air source: Inlet pipe outer diameter 8mm, pressure 0.4 – 0.6 MPa.
Environmental temperature: Constant temperature control
The installation site has no risk of fire or explosion, and there is no severe vibration.
