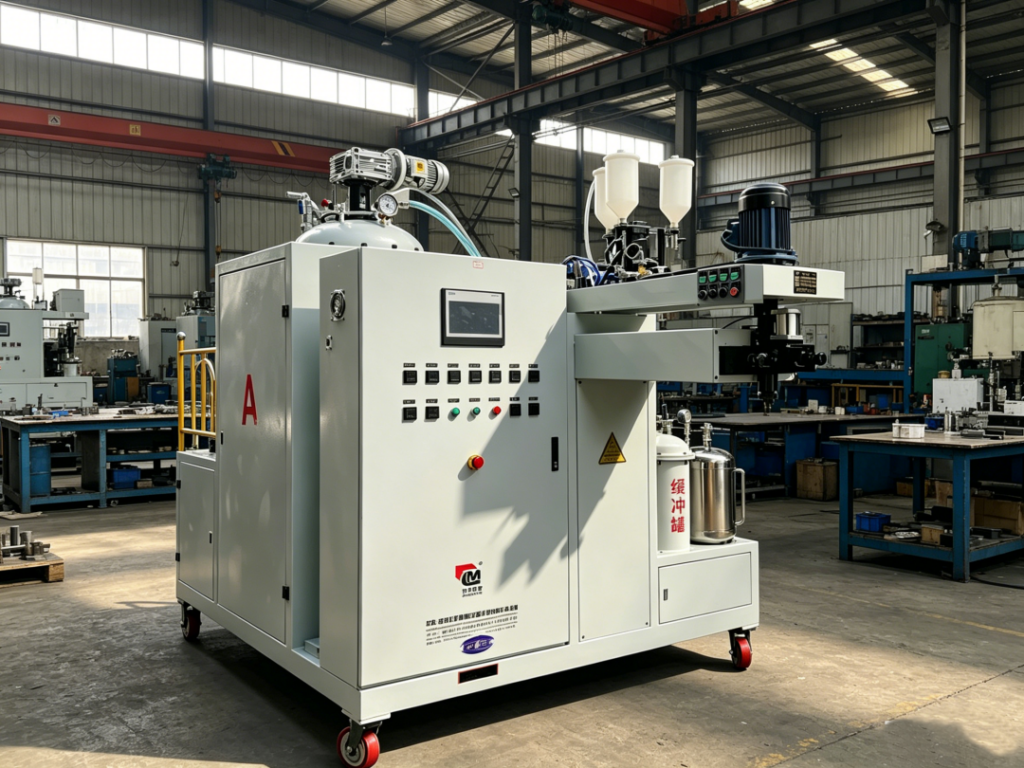

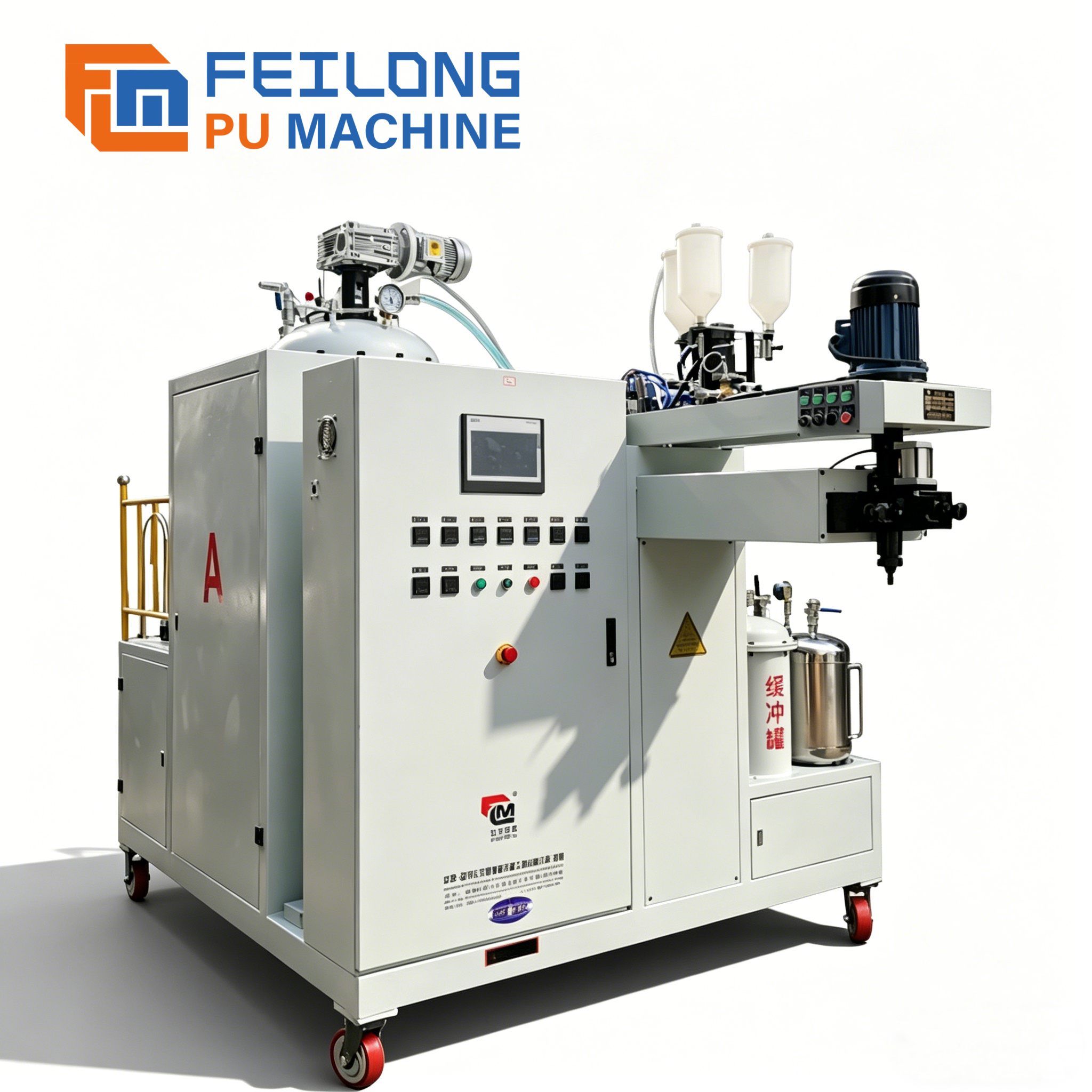

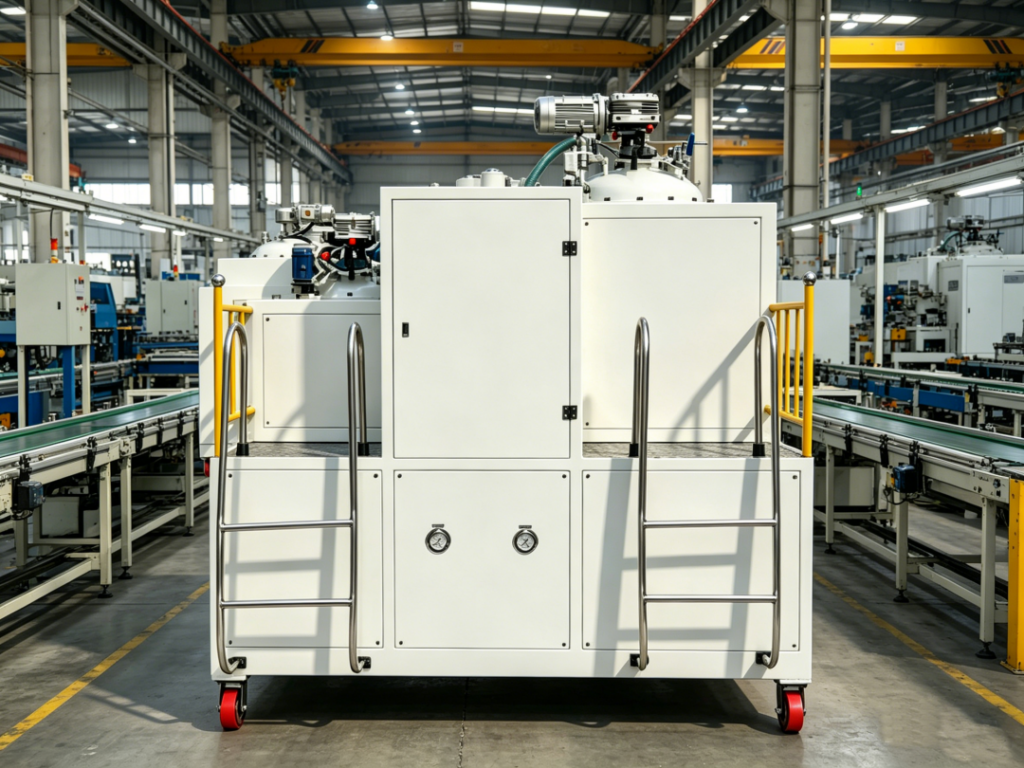

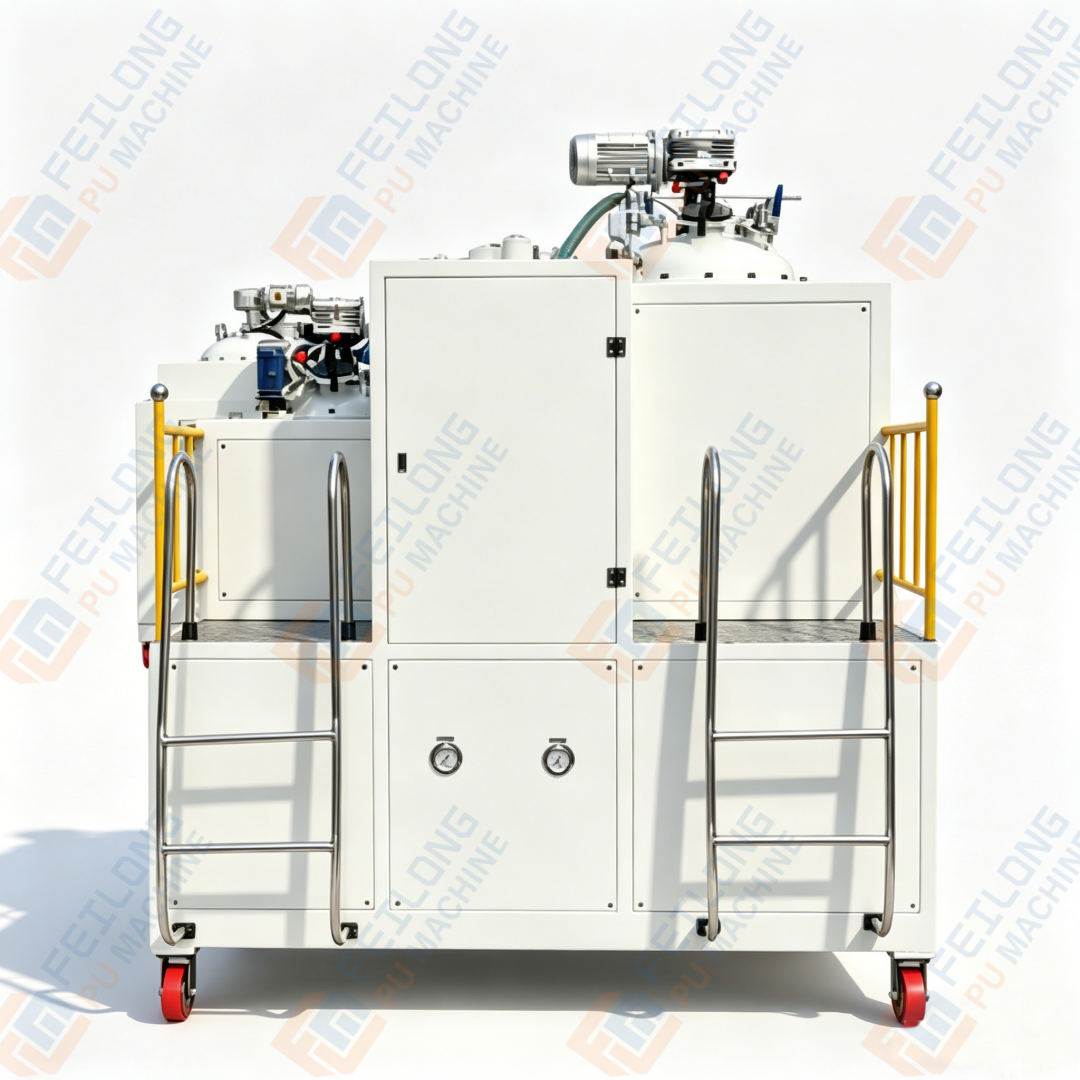

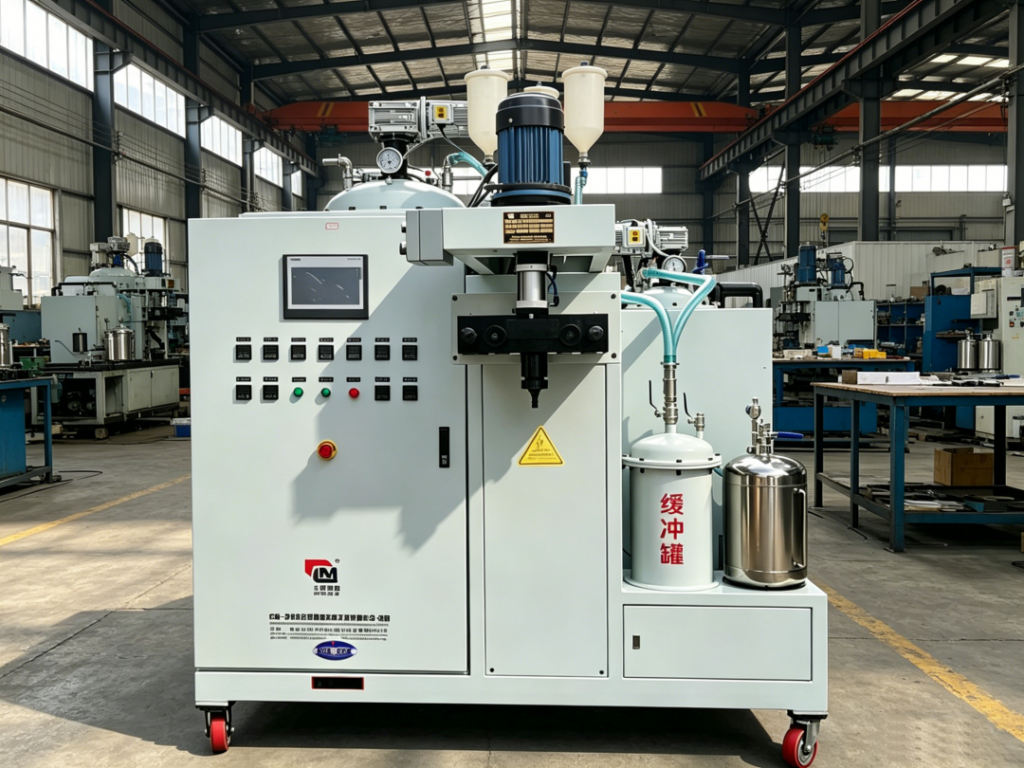

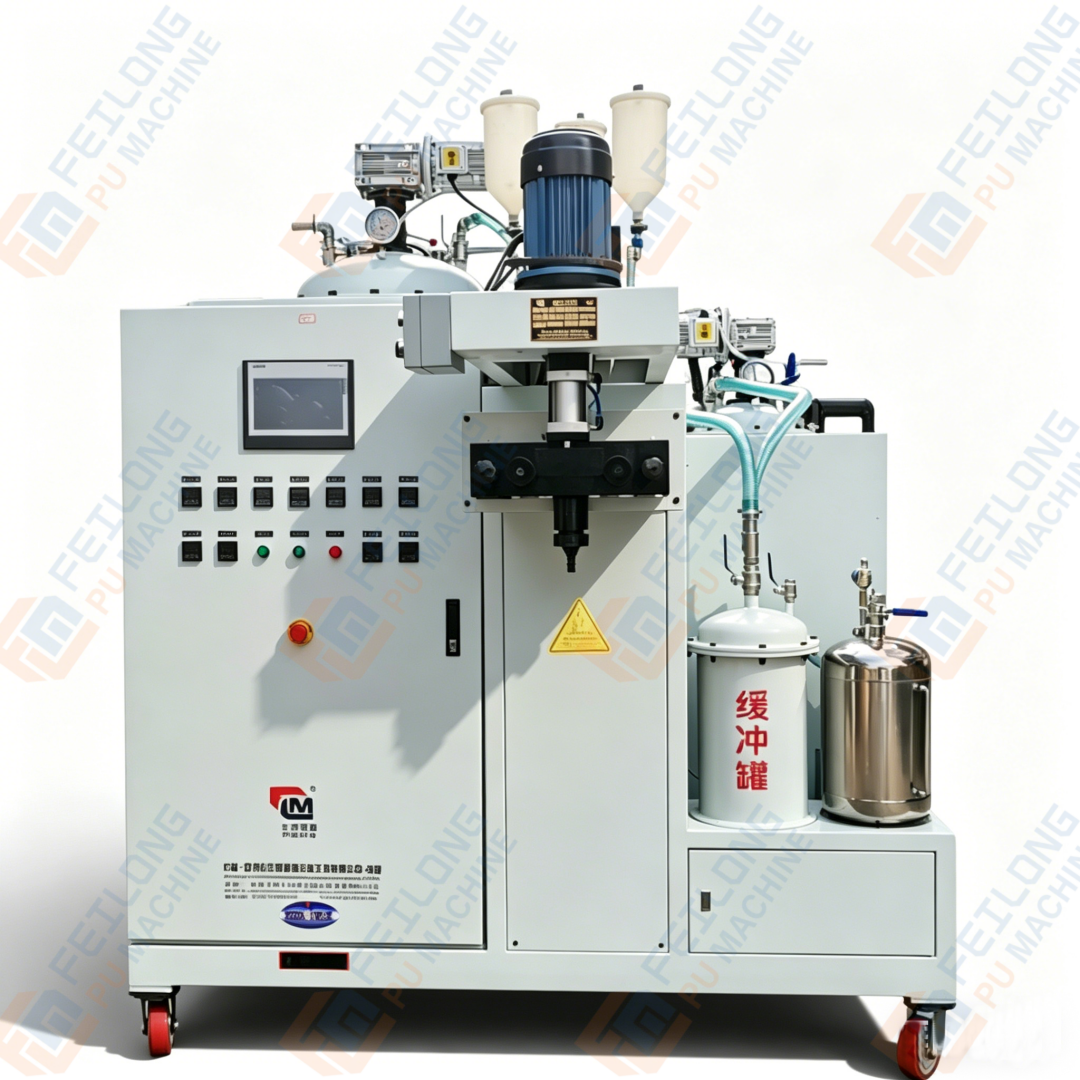

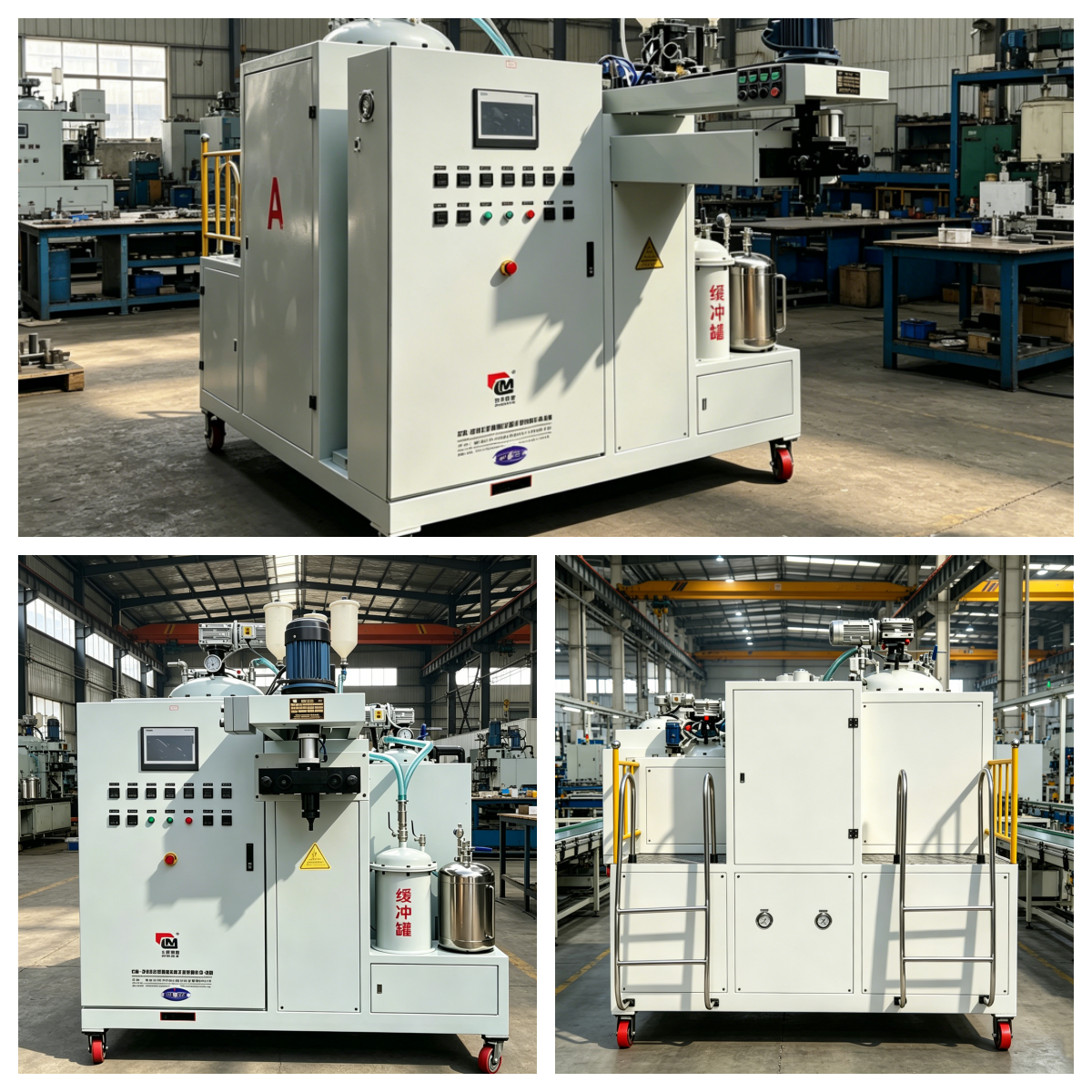

2-Component PU Elastomer Casting Machine (oil-heated) Used in the Production of Polyurethane Products – Wheels
Main purpose:
Industrial rubber rollers
Screen plates for mining
Hydraulic sealing ring
Photovoltaic guide wheel
Automotive steering shaft ball cup
Phone
+86 13567785285
Quailty Excellence
Core Performance
Excellence QC System
Provide high-quality products and services that exceed customer expectations.
High Scalability
A top-notch industry software development team provides you with first-class service.
Multi-dimensional Support
Professional technical support solutions provided by multiple industries and expert teams
Core Performance
Excellence QC System
Provide high-quality products and services that exceed customer expectations.
High Scalability
A top-notch industry software development team provides you with first-class service.
Multi-dimensional Support
Professional technical support solutions provided by multiple industries and expert teams
Key Attributes
Key Attributes
| voltage | 380 V, Customized | power (kw) | 35 kW |
| core components | PLC, Merering pump, Mixed head | warranty | 1 Year |
| machinery test report | Provided | video outgoing-inspection | Provided |
| brand name | FEILONG | place of origin | Zhejiang, China |
| weight (kg) | 2000 | Machine Type | PU elastomer casting machine |
| Produced products | Screen plate,Sealing element,Pipe lining,Wheels,Packing blocks | Material system | MDI,TDI,NDI,PPDI |
| Mixing ratio(MDI) | 100: 50-150 | Mixing ratio(TDI) | 100:6-20 |
| Mixing ratio(NDI) | 100: 2.5-8 | Mixing ratio(PPDI) | 100:80-120 |

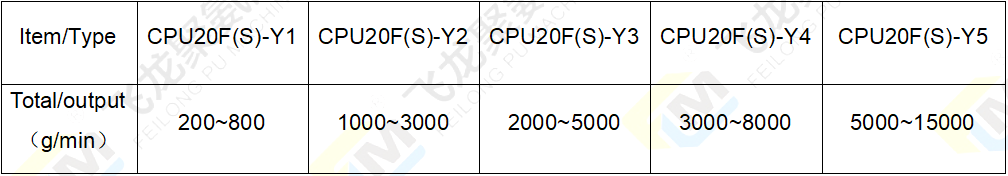

| Output | 0.1-500kg/min | Colorable/Additveable | 1 – 20 colors (customizable) |
| Certification | CE/ISO |
A high-temperature type elastomer pouring machine specially designed for the polyurethane elastomer pouring processaimed at enhancing production efficiency. The equipment can meet your current and future process operation requirements.
The mixing system adopts a special sealing device (patented technology), which is very wear-resistant, preventing the mixing shaft from clogging or spilling during high-speed rotation. It also does not require frequent maintenance; this reduces the excessive number of repairs and greatly improves production efficiency;

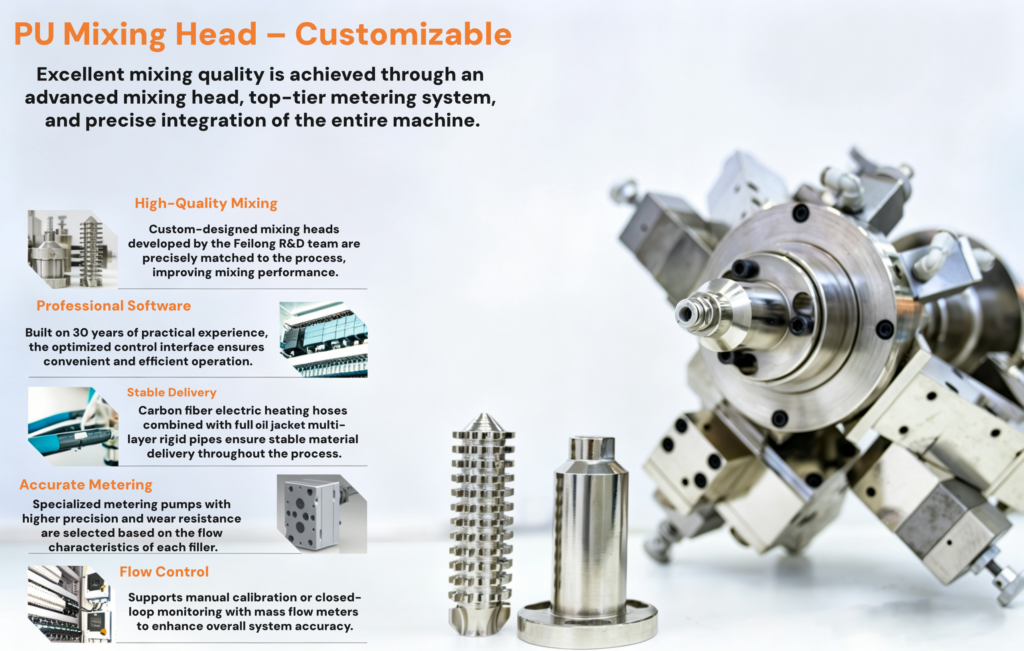

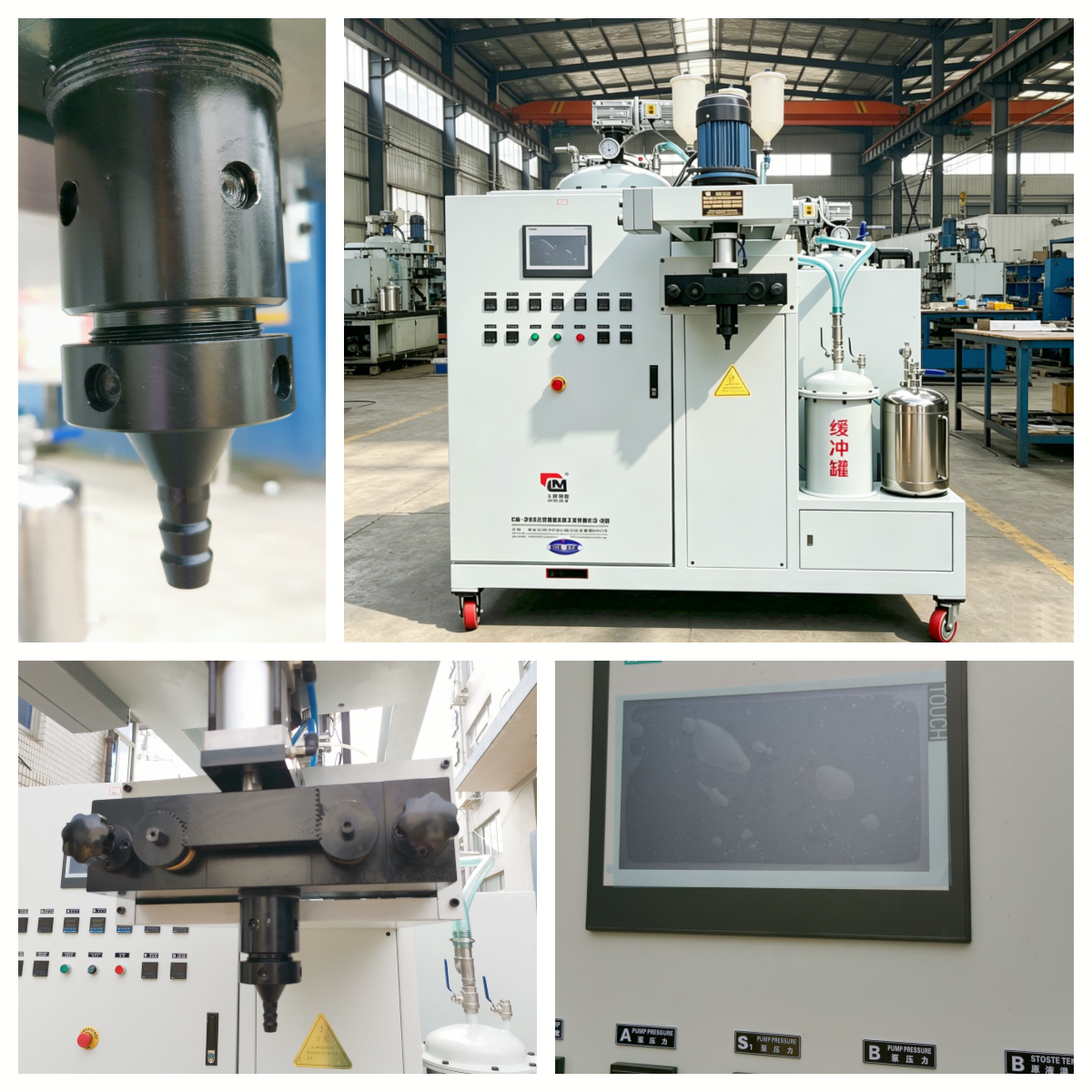

The head uses an independently developed mixing device (patented technology), and the mixing head adopts a special structure (independently developed), ensuring uniform mixing without air bubbles, with less discharge, and cost savings;
The equipment uses the entire process heating and insulation of the heating oil. Where the material circulates, the oil circuit goes there as well. The temperature is uniform, there are no dead points, the temperature rise time is short, and it is energy-saving and cost-effective, meeting the production process requirements of high precision and high ratio for products.
Three-phase five-wire system with 380V; Frequency: 50Hz;(Voltage can be customized)
Air source: Inlet pipe outer diameter 8mm, pressure 0.4 – 0.6 MPa.
Environmental temperature: Constant temperature control The installation site has no risk of fire or explosion, and there is no severe vibration.
