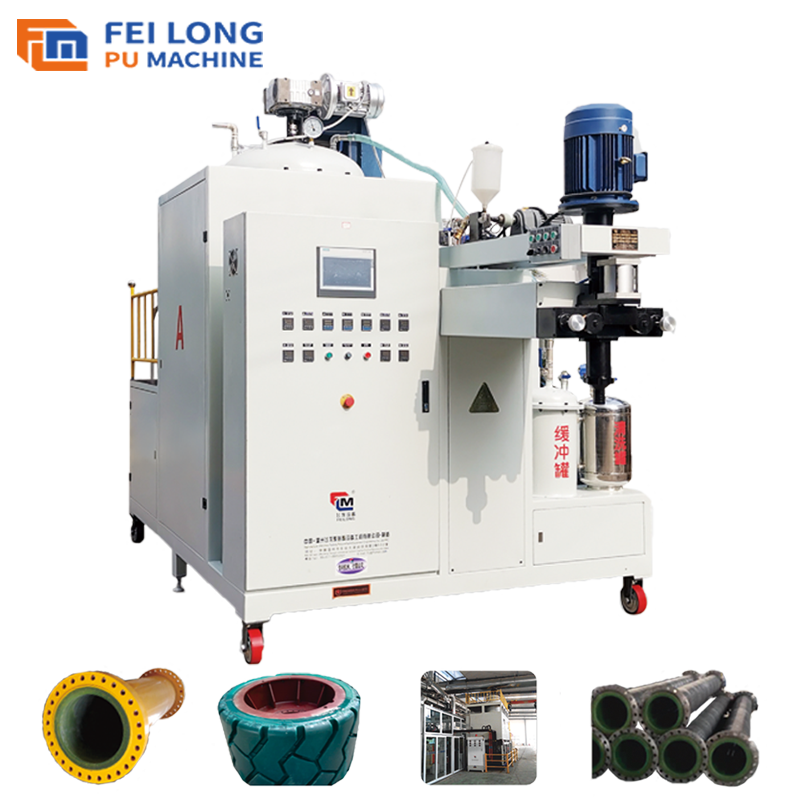

Ultra-large flow elastomer testing machine

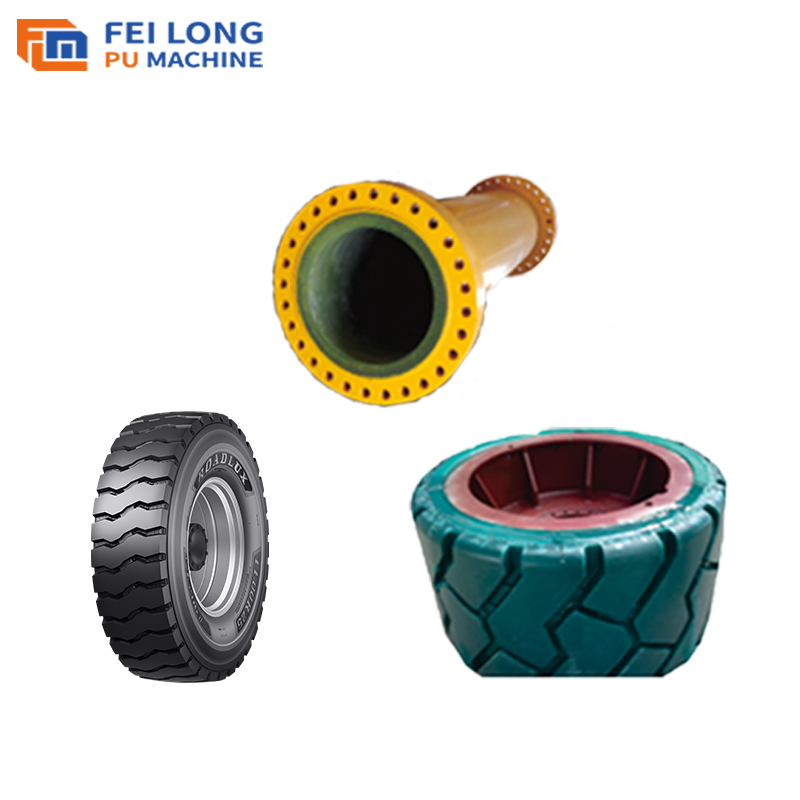

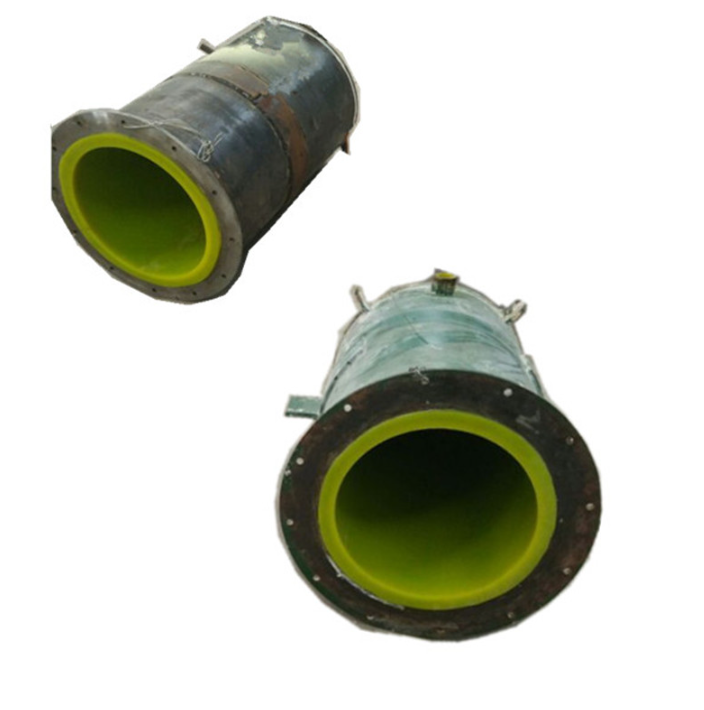

The head assembly is specially designed to ensure high mixing uniformity, effectively preventing defects in the products. It can flexibly adapt to 2 to 4 component raw materials and supports auxiliary functions such as color pigments, catalysts, and additives, enabling the production of products of different colors and hardness. It has 99 configurable formula storage positions, facilitating production switching. It is suitable for batch pouring of large-scale products such as large rubber rollers, screen plates, and sealing components in industries like metallurgy, mining, and building materials, significantly improving production efficiency.
تفاصيل المنتج
FEATURES
1.The entire system is controlled by a PLC touchscreen, displaying frequency, speed, flow rate, and HMI (Human-Machine Interface), with excellent operability and the ability to store up to 99 recipes.
2.Precise metering: High-precision low-speed gear pump ensures an error rate of ≤5%.
3.Uniform mixing: Equipped with a multi-tooth high-shear mixing head for reliable performance.
4.Casting head: Features a floating mechanical seal to prevent material backflow.
5.Stable material temperature: Utilizes a multi-point temperature control system with thermal oil heating, maintaining an error margin of <±2°C.
6.Bubble-free products: Includes a vacuum degassing system to eliminate macroscopic bubbles.
7.Optional coloring system: Directly injects color paste into the mixing unit, reducing costs and improving efficiency.
